Proud-Frame Watertight Doors for Commercial Marine Openings
Review proud-frame watertight door arrangements for commercial, workboat and project-specific access requirements.
Selection boundary: Final size, material, hardware, opening arrangement, rating and applicable documentation are confirmed in ERBA Marine’s written quotation.

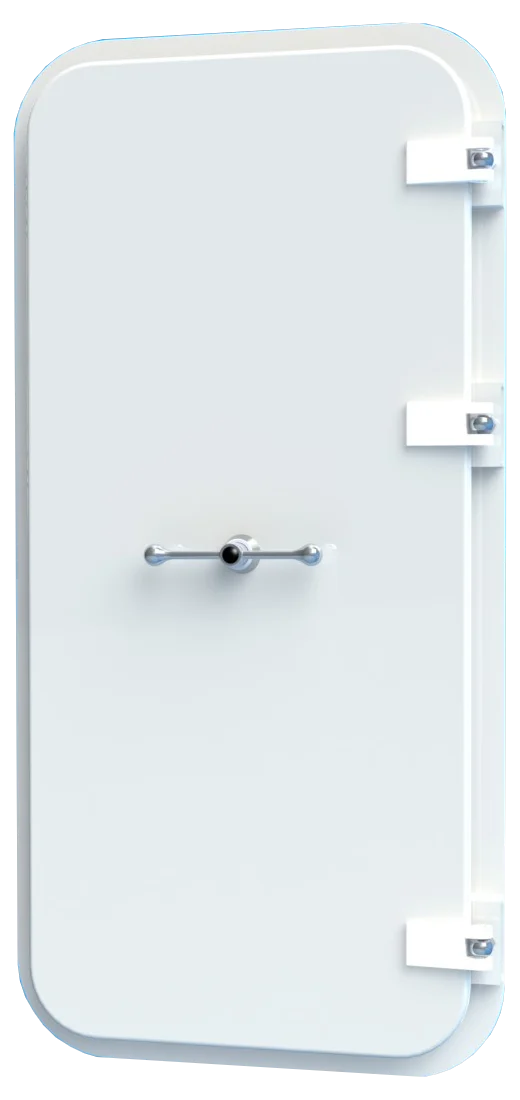

Bofor DWTPRST proud-frame watertight marine door
Official manufacturer reference image hosted locally by ERBA Marine. The supplied configuration is confirmed in writing.
01
DWTPRSTm0 and DWTPRSTm2 mechanism references
02
Individual-dog references require exact construction confirmation
03
DWTPRALm1 mechanism reference
04
DWTPRALh and DWTPRALhg references
Bofor marine closures, selected and supplied through ERBA Marine
ERBA Marine coordinates technical selection and supply for the agreed marine-door, hatch, custom-closure or component configuration. Included drawings, documents, delivery scope, service support and applicable warranty route are stated in ERBA Marine’s written quotation.
Identity and approval boundary: Bofor is the manufacturer of the referenced products. Approval is never inferred across the range. Classification, fire rating, pressure head, approved dimensions and installation conditions apply only to the exact model and current certificate scope.
SELECTION BEFORE SPECIFICATION
How to approach watertight proud-frame & commercial marine doors
Published families and images help identify a starting point; verified vessel and closure data determine the final selection.
Watertight Proud-Frame & Commercial Marine Doors
DWTPR references use a proud-frame structural interface and include individual-dog and mechanism-operated arrangements. Published codes include DWTPRSTm0, DWTPRSTm2, DWTPRSTh0, DWTPRSTh1, DWTPRALm1 and DWTPRALh or DWTPRALhg variants.
The captured supplier source is internally inconsistent for one listed reference, so this page deliberately makes no construction-material claim for that code. Material, insulation, dog mechanism, clear opening and documentation must be confirmed for every selected configuration.
Information to confirm
- Projecting interface space and surrounding structure
- Required watertight duty
- Individual dogs or linked mechanism
- Material confirmed against exact model code
- Insulation and finish requirement
- Current class or project documentation
PUBLISHED FAMILY REFERENCES
Watertight Proud-Frame & Commercial Marine Doors families and model-code groups
Compare the published family descriptions below, then send the exact project data for confirmation.
Steel-Family References
DWTPRSTm0 · DWTPRSTm2 · DWTPRSTh0 · DWTPRSTh1
Mechanism and individual-dog options; the inconsistent source construction statement is not repeated.
Aluminium-Family References
DWTPRALm1 · DWTPRALh · DWTPRALhg
Mechanism, individual-dog and glazed references within the published aluminium family.
Configuration rule: Do not transfer a material, size, dog, handle, glazing, pressure, fire-rating or approval statement from one model code to another. ERBA Marine confirms the exact selected configuration in writing.
OFFICIAL PRODUCT IMAGES
Watertight Proud-Frame & Commercial Marine Doors image gallery
Large contain-fit images preserve the complete product shape. Click an image to open it in the native Elementor lightbox.

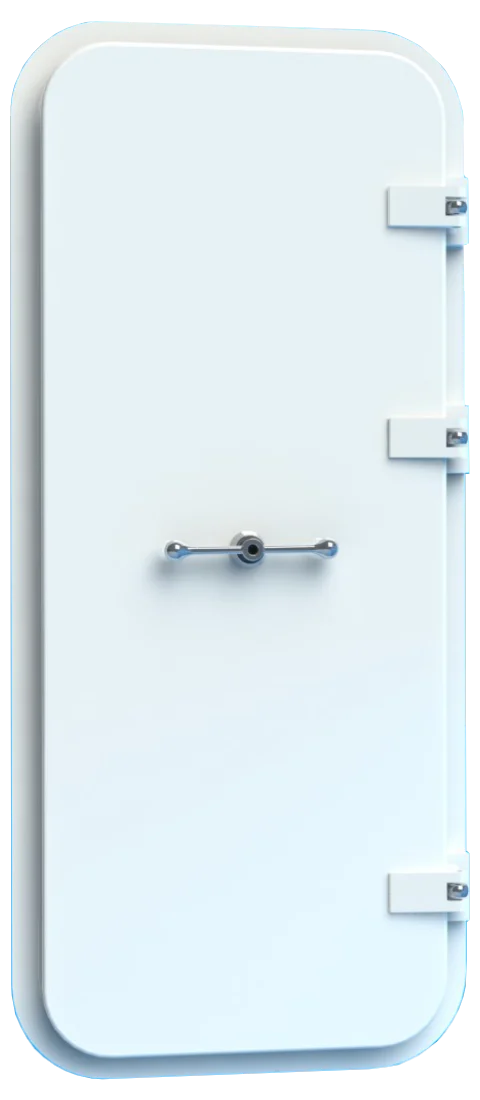

Bofor DWTPRSTm2 watertight marine door
Official Bofor reference image for Bofor DWTPRSTm2 watertight marine door. Final size, material, hardware, opening arrangement and applicable documentation are confirmed in writing for the supplied configuration.
TECHNICAL SELECTION DATA
What ERBA Marine needs before confirming a closure
Verified dimensions, location, construction, operation, hardware and documentation reduce avoidable clarification.
Vessel, opening and installation
- Projecting interface space and surrounding structure
- Required watertight duty
- Individual dogs or linked mechanism
Configuration, documents and delivery
- Material confirmed against exact model code
- Insulation and finish requirement
- Current class or project documentation
Important: Classification, fire rating, pressure head, approved dimensions and installation conditions apply only to the exact model and certificate. ERBA Marine confirms current documentation and the selected configuration in writing before supply.
CLEAR PROJECT ROUTE
From closure requirement to confirmed supply
A reference image or family code is never treated as the final fit until the vessel and exact configuration are reviewed.
1. Share the requirement
Send vessel, opening, location, duty, construction, hardware and document requirements.
2. Match the family
ERBA Marine identifies the closest current marine-door, hatch, closure or component reference.
3. Confirm the configuration
Exact size, material, operation, finish, rating, documents and supply scope are checked.
4. Quote and coordinate
ERBA Marine states delivery, included support and applicable warranty route in writing.
CONTINUE COMPARING
Related marine doors and hatches pages
Use the dedicated pages to compare the closest closure family, technical reference or component route.
Heavy Weathertight Doors
Compare heavy but weathertight proud-frame families.
FREQUENTLY ASKED QUESTIONS
Watertight Proud-Frame & Commercial Marine Doors FAQs
Practical answers for family comparison, selection, documentation, installation and quotation.
The proud-frame family projects from the surrounding structure and uses a different installation interface. Confirm available space, sill, cut-out, opening direction and operating clearance.
The supplier source contains an internal inconsistency for that code. ERBA Marine will confirm the exact construction from current technical documentation before quotation.
Published DWTPR families include individual-dog and linked-mechanism references. The correct arrangement depends on size, duty, access and project requirements.
No blanket approval claim is made. Classification, fire rating, pressure head, approved dimensions and installation conditions apply only to the exact model and current certificate scope. ERBA Marine confirms the applicable documentation for the selected configuration in writing.
Custom dimensions and special arrangements may be reviewed, but a change can affect construction, hardware, lead time and approval coverage. Treat the published families as selection references; ERBA Marine confirms the final buildable and documentable configuration in the quotation.
Send the watertight proud-frame & commercial marine doors requirement
Accurate opening, vessel, location and duty data helps ERBA Marine compare the current family, configuration and documents and prepare a useful quotation.
- State the clear opening and structural cut-out.
- Describe location, exposure and required closure duty.
- Confirm material, opening direction, glazing and hardware.
- Attach drawings, existing photographs and document requirements.
