Marine Windows & Profiles
Compare the published marine windows & profiles scope, local official references and the exact project data ERBA Marine needs before confirming supply.
Selection boundary: Final size, material, hardware, opening arrangement, rating and applicable documentation are confirmed in ERBA Marine’s written quotation.
Bofor multi-panel slim marine window example
Official manufacturer reference image hosted locally by ERBA Marine. The supplied configuration is confirmed in writing.
01
Official Bofor reference content is hosted locally by ERBA Marine.
02
Approved category and family boundaries remain explicit.
03
Final configuration and current availability are quotation-controlled.
04
Approval claims require current exact-scope documentation.
Bofor marine closures, selected and supplied through ERBA Marine
ERBA Marine coordinates technical selection and supply for the agreed marine-door, hatch, custom-closure or component configuration. Included drawings, documents, delivery scope, service support and applicable warranty route are stated in ERBA Marine’s written quotation.
Identity and approval boundary: Bofor is the manufacturer of the referenced products. Approval is never inferred across the range. Classification, fire rating, pressure head, approved dimensions and installation conditions apply only to the exact model and current certificate scope.
SELECTION BEFORE SPECIFICATION
How to approach marine windows & profiles
Published families and images help identify a starting point; verified vessel and closure data determine the final selection.
Marine Windows & Profiles
Marine Windows & Profiles is one of the five approved ERBA Marine Doors & Hatches divisions. Its 4 category routes separate different applications and operating arrangements so customers can compare the correct family without transferring specifications between products.
Use the category and family pages for preliminary selection, then send verified vessel, opening, installation, configuration and document data. ERBA Marine confirms current availability and the exact supplied scope in writing.
Information to confirm
- Glass build-up and thickness together with published hull-thickness range
- Fixed, sliding, half-drop, hinged-in or hinged-out operating configuration
- Vessel type, project stage, installation location and exposure
- Verified clear opening, structural cut-out and corner radii in millimetres
- Surrounding structure, frame interface, available depth and drainage
- Hinge side, opening direction, travel envelope and access constraints
- Preferred material, finish, insulation, glazing or teak arrangement
- Locks, dogs, handles, closers, stoppers and emergency operation
- Required weathertight, watertight, fire, class or flag duty
- Required drawings, certificates, calculations and installation documents
- Existing model code, photographs and measurements for replacements
- Quantity, delivery country or port and required schedule
PUBLISHED FAMILY REFERENCES
Marine Windows & Profiles families and model-code groups
Compare the published family descriptions below, then send the exact project data for confirmation.
Fixed Clamping Marine Windows
WNF1, WNF2, WNF3, WNF4, WNF5, WNF6, WNF7
7 published selection routes; exact configuration and documents remain quotation-controlled.
Hinged Marine Windows
WNH1a, WNH1b, WNREC
3 published selection routes; exact configuration and documents remain quotation-controlled.
Sliding and Half-drop Marine Windows
WNS1, WNG1
2 published selection routes; exact configuration and documents remain quotation-controlled.
Marine Window Selection and Finishes
Category selector
Item-card published selection routes; exact configuration and documents remain quotation-controlled.
Configuration rule: Do not transfer a material, size, dog, handle, glazing, pressure, fire-rating or approval statement from one model code to another. ERBA Marine confirms the exact selected configuration in writing.
PUBLISHED SELECTION DATA
Marine Windows & Profiles model and configuration references
Use these published references for preliminary comparison. ERBA Marine confirms current availability, final dimensions, compatibility and controlled documents in writing.
Published marine window profile references
| Profile | Configuration | Glass reference | Hull-range references | Status |
|---|---|---|---|---|

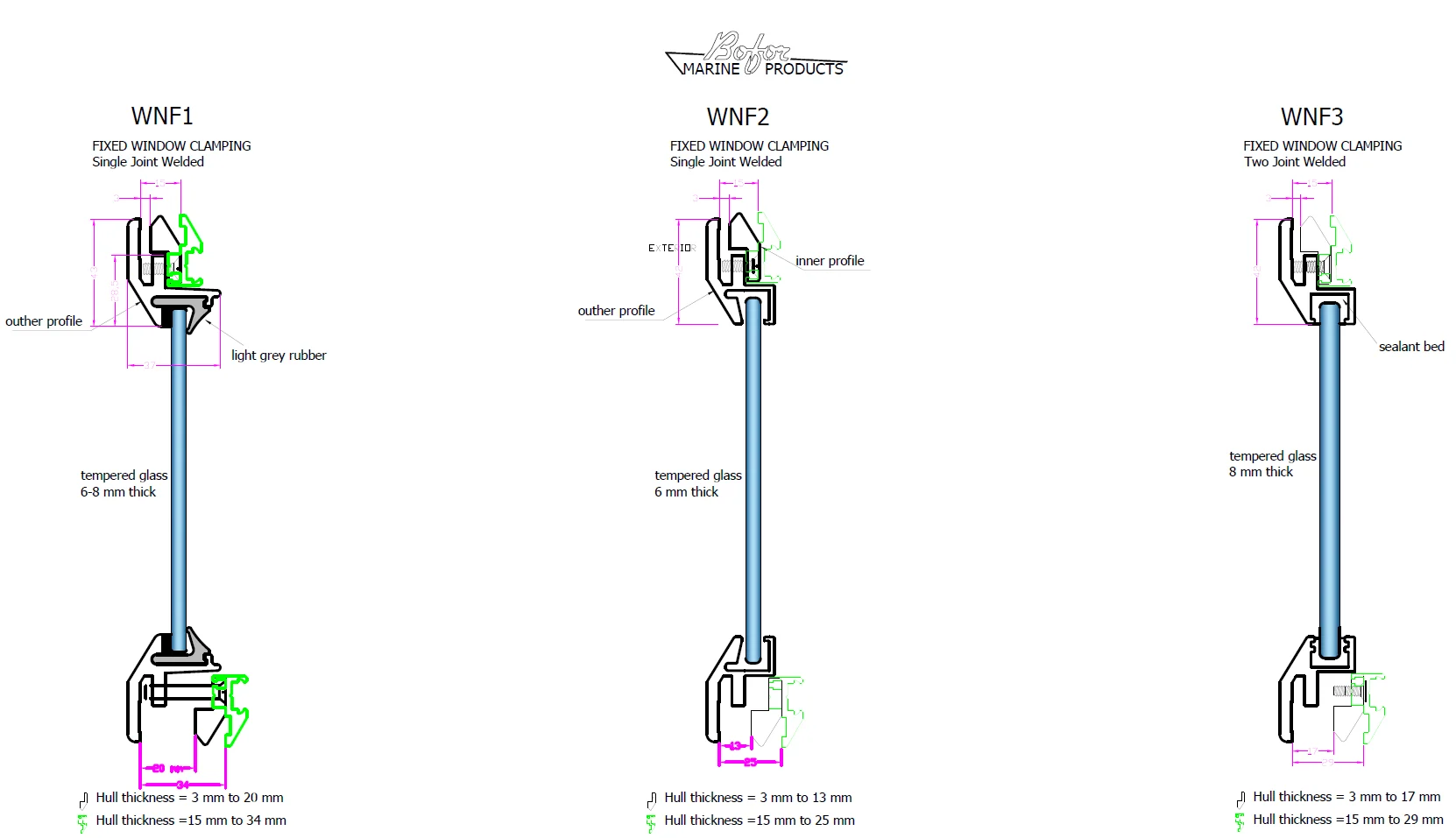

| WNF1 | Fixed clamping, single-joint welded | Tempered 6–8 mm | 3–20 mm / 15–34 mm | Draft-ready |
| WNF2 | Fixed clamping, single-joint welded | 6 mm | 3–13 mm / 15–25 mm | Draft-ready |
| WNF3 | Fixed clamping, two-joint welded | 8 mm | 3–17 mm / 15–29 mm | Draft-ready |
| WNF4 | Fixed clamping, three-piece/single-joint | 10–20 mm+ | 6–25 mm / 20–38 mm | Draft-ready |
| WNF5 | Fixed clamping, three-piece with SS316 clamp | 10 mm+ | 6–18 mm / 18–30 mm | Draft-ready |
| WNF6 | Fixed clamping | 6, 8, 10 or 12 mm | 3–30 mm / 15–42 mm | Draft-ready |

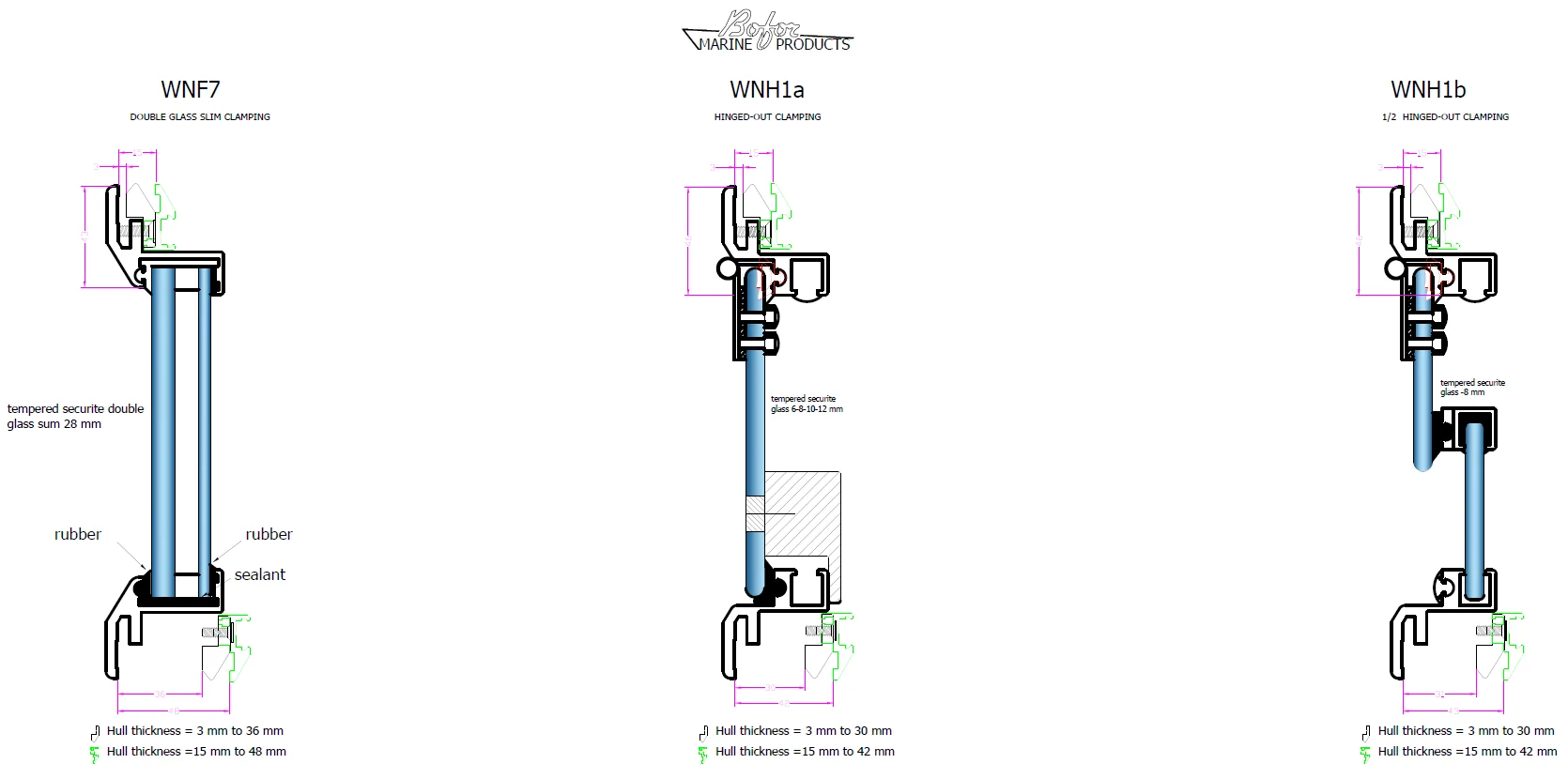

| WNF7 | Thermal double-glazed slim clamping | 28 mm total glazing reference | 3–36 mm / 15–48 mm | Draft-ready |
| WNH1a | Hinged-out clamping | 6, 8, 10 or 12 mm | 3–30 mm / 15–42 mm | Draft-ready with diagram-filename note |
| WNH1b | Half hinged-out clamping | Use controlled diagram | 3–30 mm / 15–42 mm | Draft-ready with diagram-filename note |

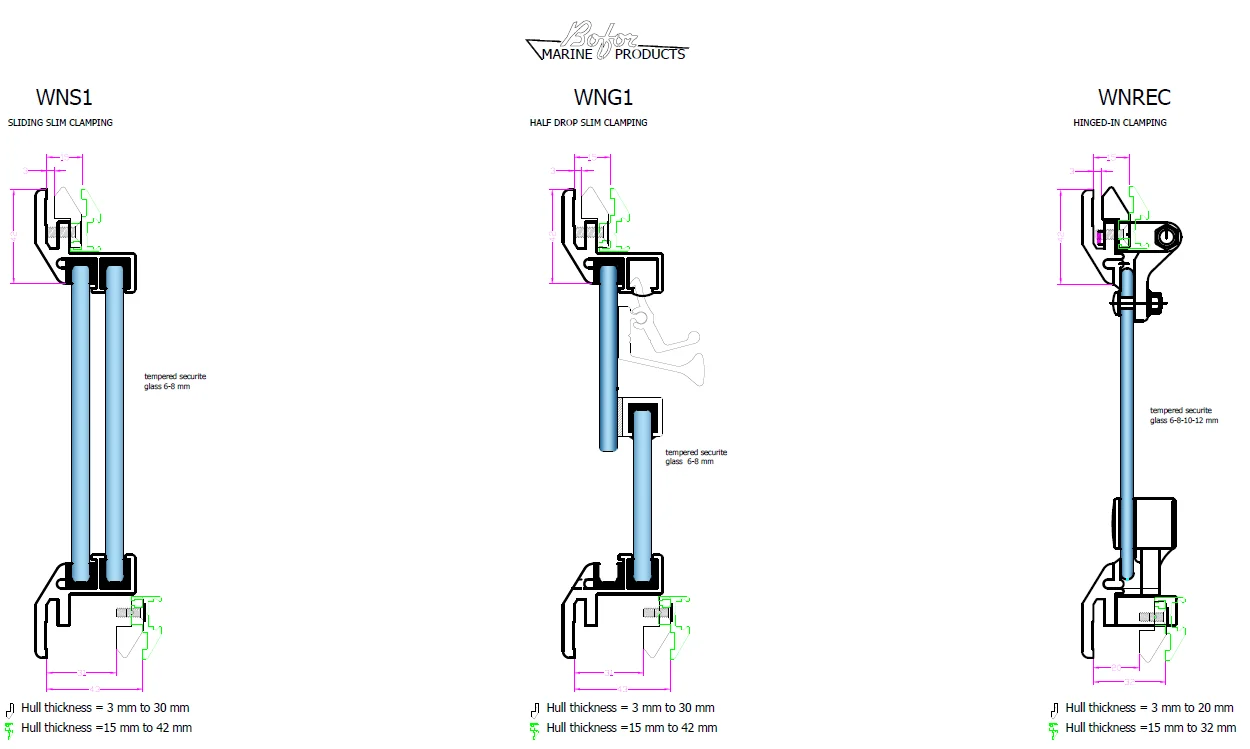

| WNREC | Hinged-in clamping | 6, 8, 10 or 12 mm | 3–20 mm / 15–32 mm | Draft-ready |
| WNS1 | Sliding slim clamping | 6–8 mm | 3–30 mm / 15–42 mm | Draft-ready |
| WNG1 | Half-drop slim clamping | 6–8 mm | 3–30 mm / 15–42 mm | Draft-ready |
Selection note: All combinations are preliminary source-sheet references. Final glass build-up, finish system, inner clamp, cut-out and profile compatibility are confirmed in ERBA Marine’s quotation.
OFFICIAL PRODUCT IMAGES
Marine Windows & Profiles image gallery
Large contain-fit images preserve the complete product shape. Click an image to open it in the native Elementor lightbox.

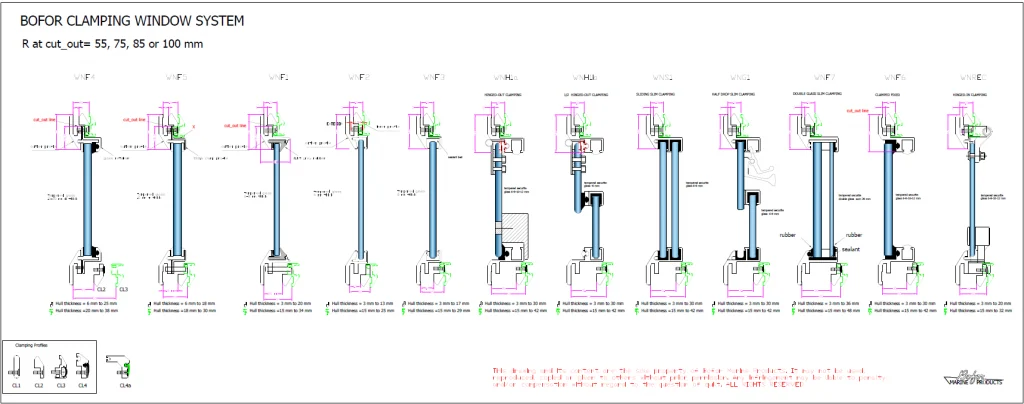

Bofor marine window profile system overview
Official Bofor reference for marine window profile system overview. Final model, dimensions, material, glazing, finish, installation and current availability are confirmed in ERBA Marine’s written quotation.

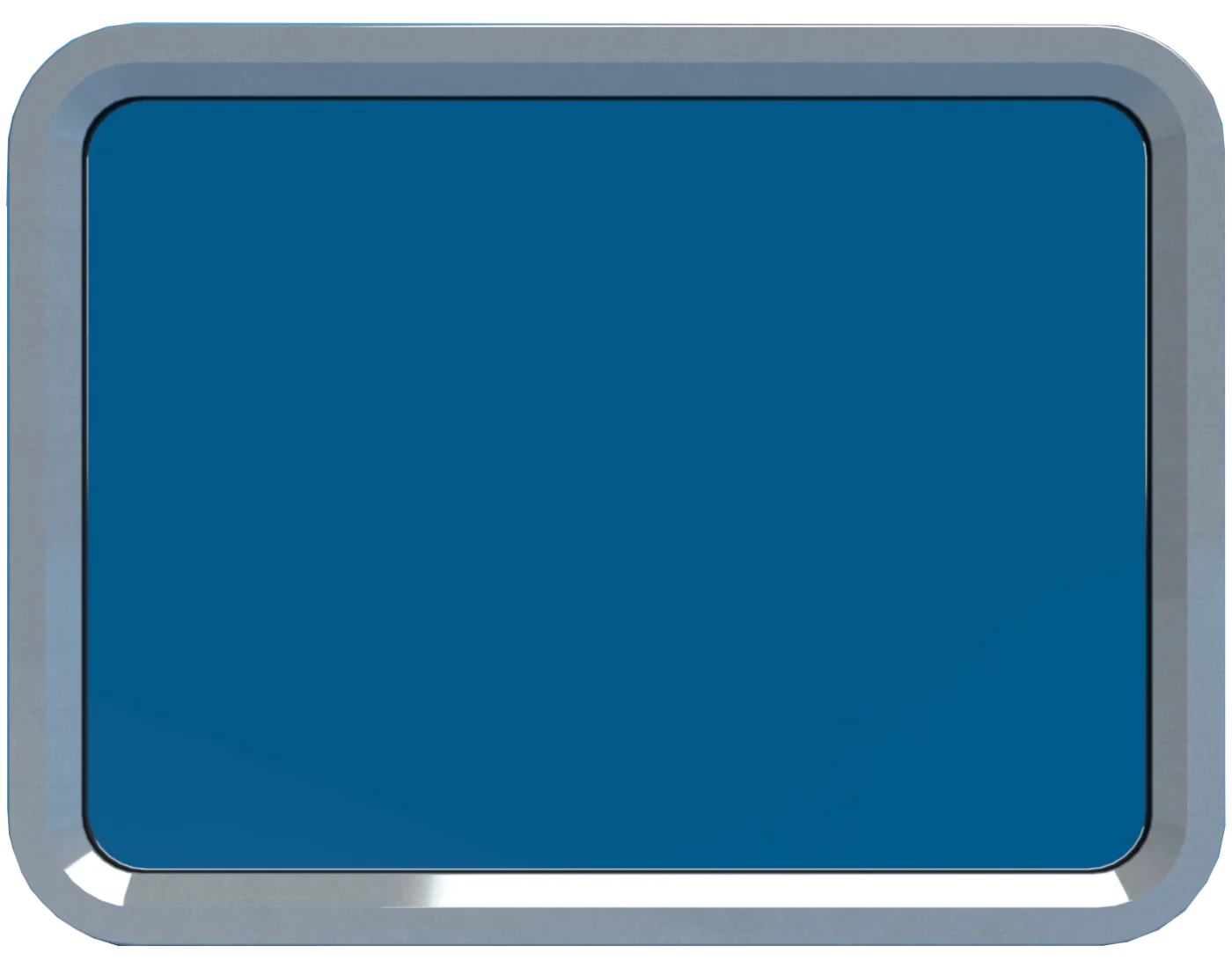

Bofor thermal marine window example
Official Bofor reference for thermal marine window example. Final model, dimensions, material, glazing, finish, installation and current availability are confirmed in ERBA Marine’s written quotation.
TECHNICAL SELECTION DATA
What ERBA Marine needs before confirming a closure
Verified dimensions, location, construction, operation, hardware and documentation reduce avoidable clarification.
Vessel, opening and installation
- Glass build-up and thickness together with published hull-thickness range
- Fixed, sliding, half-drop, hinged-in or hinged-out operating configuration
- Vessel type, project stage, installation location and exposure
- Verified clear opening, structural cut-out and corner radii in millimetres
- Surrounding structure, frame interface, available depth and drainage
- Hinge side, opening direction, travel envelope and access constraints
Configuration, documents and delivery
- Preferred material, finish, insulation, glazing or teak arrangement
- Locks, dogs, handles, closers, stoppers and emergency operation
- Required weathertight, watertight, fire, class or flag duty
- Required drawings, certificates, calculations and installation documents
- Existing model code, photographs and measurements for replacements
- Quantity, delivery country or port and required schedule
Important: Classification, fire rating, pressure head, approved dimensions and installation conditions apply only to the exact model and certificate. ERBA Marine confirms current documentation and the selected configuration in writing before supply.
CLEAR PROJECT ROUTE
From closure requirement to confirmed supply
A reference image or family code is never treated as the final fit until the vessel and exact configuration are reviewed.
1. Share the requirement
Send vessel, opening, location, duty, construction, hardware and document requirements.
2. Match the family
ERBA Marine identifies the closest current marine-door, hatch, closure or component reference.
3. Confirm the configuration
Exact size, material, operation, finish, rating, documents and supply scope are checked.
4. Quote and coordinate
ERBA Marine states delivery, included support and applicable warranty route in writing.
CONTINUE COMPARING
Related marine doors and hatches pages
Use the dedicated pages to compare the closest closure family, technical reference or component route.
Marine Doors & Hatches
Continue with the approved marine doors & hatches route.
Fixed Clamping Marine Windows
Continue with the approved fixed clamping marine windows route.
Sliding and Half-drop Marine Windows
Continue with the approved sliding and half-drop marine windows route.
Marine Window Selection and Finishes
Continue with the approved marine window selection and finishes route.
Closure Hardware & Accessories
Continue with the approved closure hardware & accessories route.
FREQUENTLY ASKED QUESTIONS
Marine Windows & Profiles FAQs
Practical answers for family comparison, selection, documentation, installation and quotation.
Start with the published family, model or item references on this page, then provide the verified opening, location, structure, duty, operation and document requirements. ERBA Marine confirms the exact selected configuration in writing.
No. Published dimensions, model codes, images and options support preliminary comparison. Current availability, final cut-out, material, finish, hardware and compatibility are confirmed in the quotation before fabrication or supply.
No. An image is a visual reference only, and a certificate applies only to its exact model, revision, construction, limits and installation conditions. ERBA Marine reconfirms current exact-scope documentation for the selected item.
Customisation depends on the product family and project. Send drawings, opening and cut-out dimensions, surrounding structure, operation, glazing or finish, hardware, required duty and schedule for technical review.
Include vessel and installation location, clear opening and cut-out, hinge/opening direction, photographs or drawings, material and finish preference, hardware, rating/document requirements, quantity, delivery point and schedule.
Send the marine windows & profiles requirement
Accurate opening, vessel, location and duty data helps ERBA Marine compare the current family, configuration and documents and prepare a useful quotation.
- State the clear opening and structural cut-out.
- Describe location, exposure and required closure duty.
- Confirm material, opening direction, glazing and hardware.
- Attach drawings, existing photographs and document requirements.
