COMPLEX POWER SYSTEMS
Advanced DSEG8-Series Paralleling Controllers
Scalable DSEG8-Series control for complex multi-generator, multi-bus and shore or mains power-management projects.
- 4 current model or support pages
- Select this family for larger switchboards, multiple bus sections, group control, colour interfaces or project-specific power-management logic.
- Selection confirmed against the vessel power-system design
MANUFACTURER REFERENCE
Deep Sea Electronics (DSE)
ERBA MARINE ROLE
Marine generator controller selection, panel integration, project supply and technical enquiry support.
QUOTATION BOUNDARY
Deep Sea Electronics product names and technical references identify the manufacturer and source range. ERBA Marine is the project enquiry and supply contact. Final make, model, configuration, firmware, documentation, warranty, delivery and service scope are confirmed only in ERBA Marine's written quotation.
COMPLEX POWER SYSTEMS
Current Advanced DSEG8-Series Paralleling Controllers
Select this family for larger switchboards, multiple bus sections, group control, colour interfaces or project-specific power-management logic.
Advanced parallel-genset controller with integral heater and configurable single-set, multi-set, mains or group roles.
- Single-set, multi-set, mains or group-controller roles
- Parallel genset and load-management control
- Integral heater

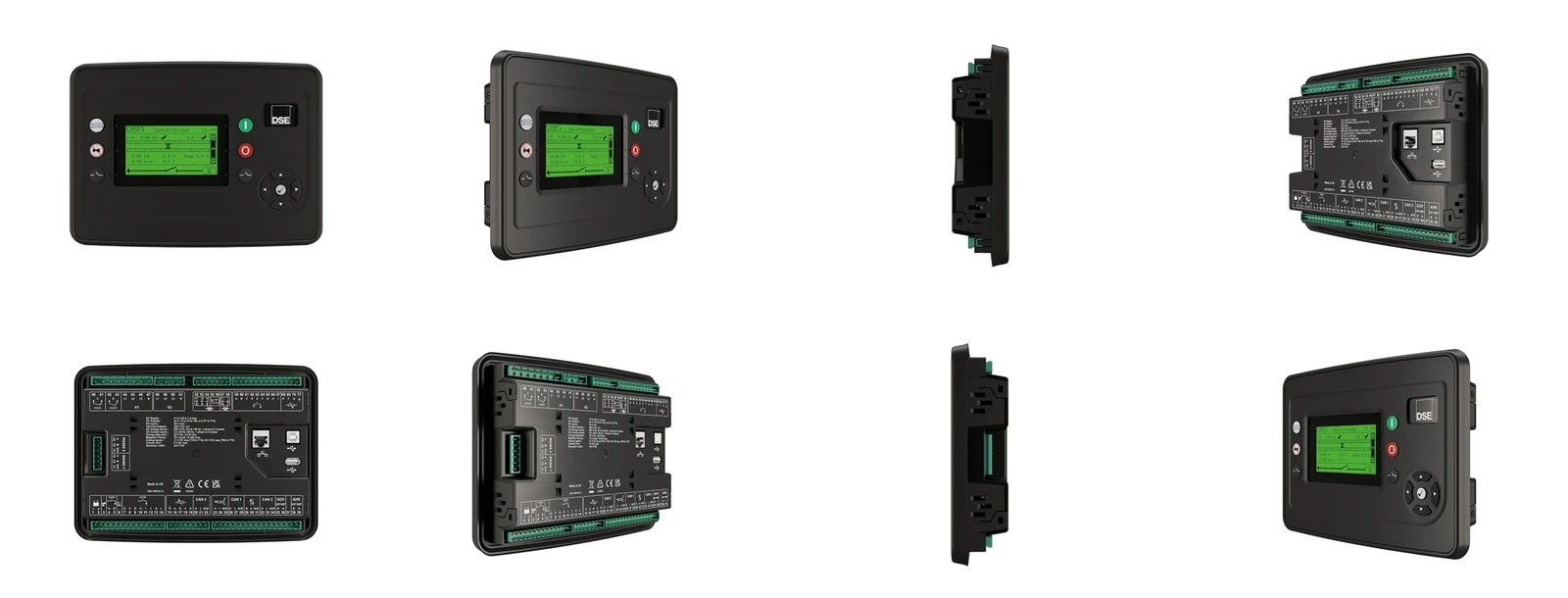

ATS and mains or shore-source controller with integral heater for use with DSEG8600 multi-set systems.
- ATS and source-controller role
- Designed to work with DSEG8600 multi-set control
- Generator-group to source synchronising

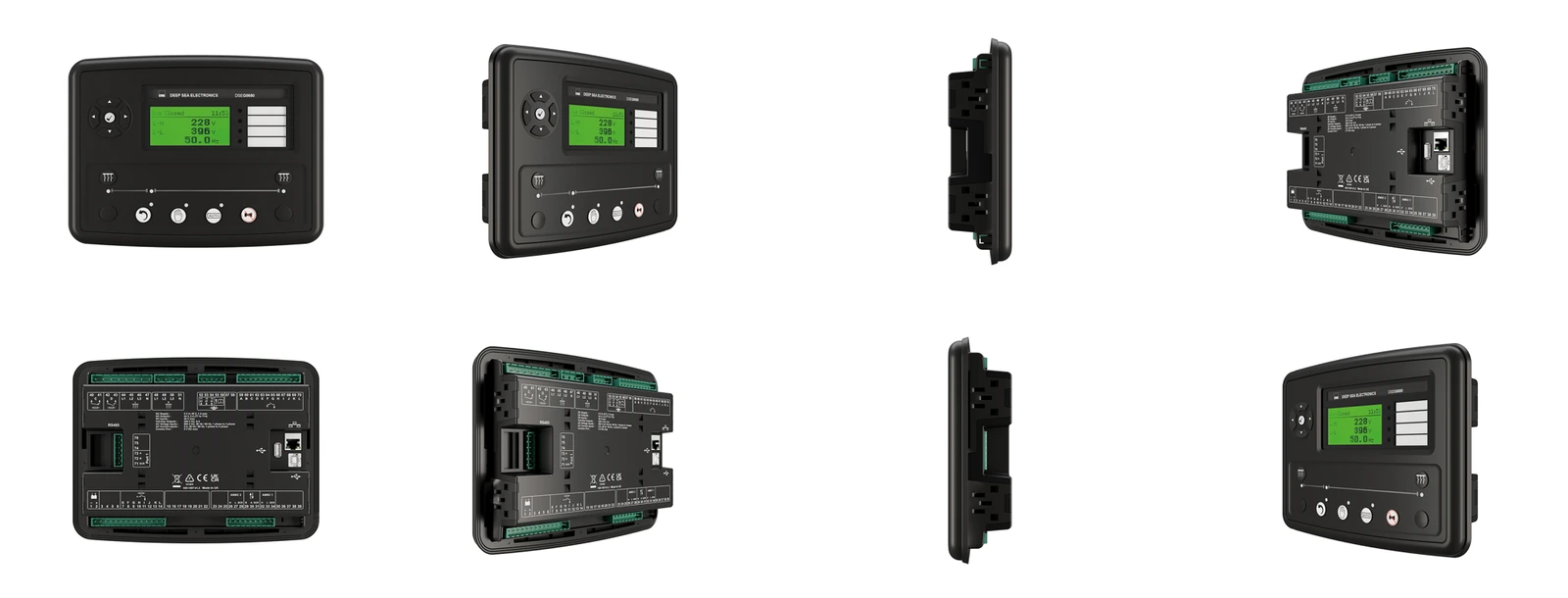

Configurable G8 bus-tie or load-switch controller for synchronising bus segments in an advanced DSEG8xxx system.
- Bus-tie or load-switch configuration
- Works with DSEG8600 and DSEG8660 system roles
- AMSC communications
Seven-inch colour parallel-genset controller for single-set and multi-set paralleling applications.
- 7-inch colour display
- Single-set and multi-set paralleling
- Advanced application features
TECHNICAL SELECTION
Information needed before controller selection
Select this family for larger switchboards, multiple bus sections, group control, colour interfaces or project-specific power-management logic.
- Generator quantity and duty: standby, prime, parallel or load-demand operation
- Generator kVA/kW, voltage, phase, frequency and alternator details
- Engine make/model, ECU or conventional sensors, starting voltage and wiring information
- Breaker arrangement, bus sections, shore or mains source and permitted operating modes
- Required synchronising, kW/kVAr sharing, governor and AVR interfaces
- Alarm, shutdown, metering, I/O, CAN/J1939, Modbus, Ethernet or remote-monitoring requirements
- Panel cut-out, enclosure/IP needs, classification/flag documentation and delivery schedule
PROJECT PROCESS
From vessel data to a controlled quotation
A short engineering review prevents the wrong control role, incompatible cut-out or missing interface from entering the order.
1. Share the power-system arrangement
Send the single-line diagram, generator and engine details, source/bus arrangement and the controller being replaced, if any.
2. Confirm the control role
ERBA reviews start/stop, AMF, synchronising, load-sharing, ATS, bus-tie, display and expansion requirements.
3. Check interfaces and documents
Governor, AVR, CAN, sensors, I/O, communications, panel cut-out and project-document needs are checked before selection.
4. Receive the project quotation
The written quotation confirms the proposed model, configuration scope, included documents, delivery and commercial terms.
GENERATOR CONTROL FAQ
Frequently asked questions
Current-model guidance and the information ERBA needs before confirming a marine generator control solution.
Select this family for larger switchboards, multiple bus sections, group control, colour interfaces or project-specific power-management logic. Send the generator, engine, electrical and switchboard details so ERBA can check the correct control role before quotation.
The DSE8610 MKII is ERBA’s core current choice for generator-to-generator synchronising and load sharing. DSE8620 MKII, DSE8660 MKII and DSE8680 cover different shore or mains, ATS and bus-tie roles, while the DSEG8-Series is considered for more complex systems.
Yes, as a technical retrofit enquiry. Send the existing controller model, panel photographs, wiring drawings, engine and alternator details, breaker arrangement and required operating sequence. A replacement is not assumed to be pin-compatible until the interfaces are checked.
The current DSE products shown are generator-control products that may be selected for marine generator projects. Vessel, flag, classification, EMC, enclosure and documentation requirements must be reviewed for the specific installation; the page does not claim blanket marine approval.
Provide generator quantity and rating, voltage/phase/frequency, engine and alternator details, DC supply, sensor or CAN interface, breakers and bus arrangement, shore or mains source, required communications, panel dimensions, existing drawings and delivery location.
Configuration, panel integration, drawings, testing, commissioning support and included accessories vary by project. ERBA’s written quotation will state the exact controller, programming and supply scope; no default commissioning scope is implied by the catalogue page.
TECHNICAL ENQUIRY
Send the generator and switchboard requirements
The form routes the exact page and model context to ERBA Marine. Attach wiring drawings, controller and engine nameplates, single-line diagrams and panel photographs where available.
- Controller selection and compatibility review
- New panel, retrofit and replacement enquiries
- Single-set, AMF, synchronising and G8 projects
- Written scope confirmation before supply
