SYSTEM SUPPORT
Displays, Expansion & Integration
Remote overview displays, SCADA interfaces, I/O expansion and synchronising support modules used around DSE generator controllers.
- 6 current model or support pages
- These are supporting system components rather than standalone generator controllers. Their compatibility must be checked against the selected host controller and project architecture.
- Selection confirmed against the vessel power-system design
MANUFACTURER REFERENCE
Deep Sea Electronics (DSE)
ERBA MARINE ROLE
Marine generator controller selection, panel integration, project supply and technical enquiry support.
QUOTATION BOUNDARY
Deep Sea Electronics product names and technical references identify the manufacturer and source range. ERBA Marine is the project enquiry and supply contact. Final make, model, configuration, firmware, documentation, warranty, delivery and service scope are confirmed only in ERBA Marine's written quotation.
SYSTEM SUPPORT
Current Displays, Expansion & Integration
These are supporting system components rather than standalone generator controllers. Their compatibility must be checked against the selected host controller and project architecture.
Fifteen-inch Windows panel PC supplied with DSESCADA for G8-Series monitoring and commissioning over Ethernet.
- 15-inch full-HD capacitive touchscreen
- DSESCADA software pre-loaded
- G8-Series Ethernet integration

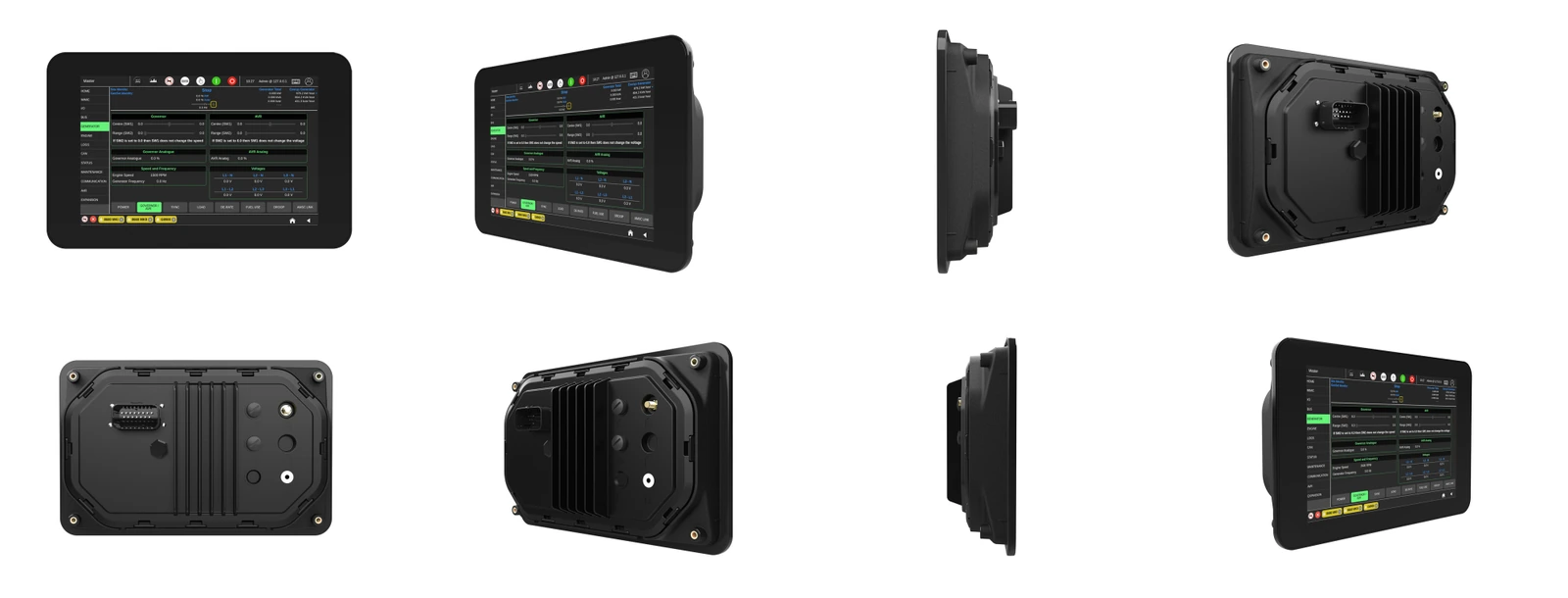

Seven-inch colour touchscreen for remote control and monitoring of single-set or multi-set DSEG8600 systems.
- 7-inch full-colour touchscreen
- Remote monitoring and control
- Single-set and multi-set DSEG8600 integration
Ten-inch touchscreen DSESCADA display for monitoring, control and commissioning of DSEG8-Series systems over Ethernet.
- 10-inch capacitive touchscreen
- DSESCADA software platform
- DSEG8-Series Ethernet integration

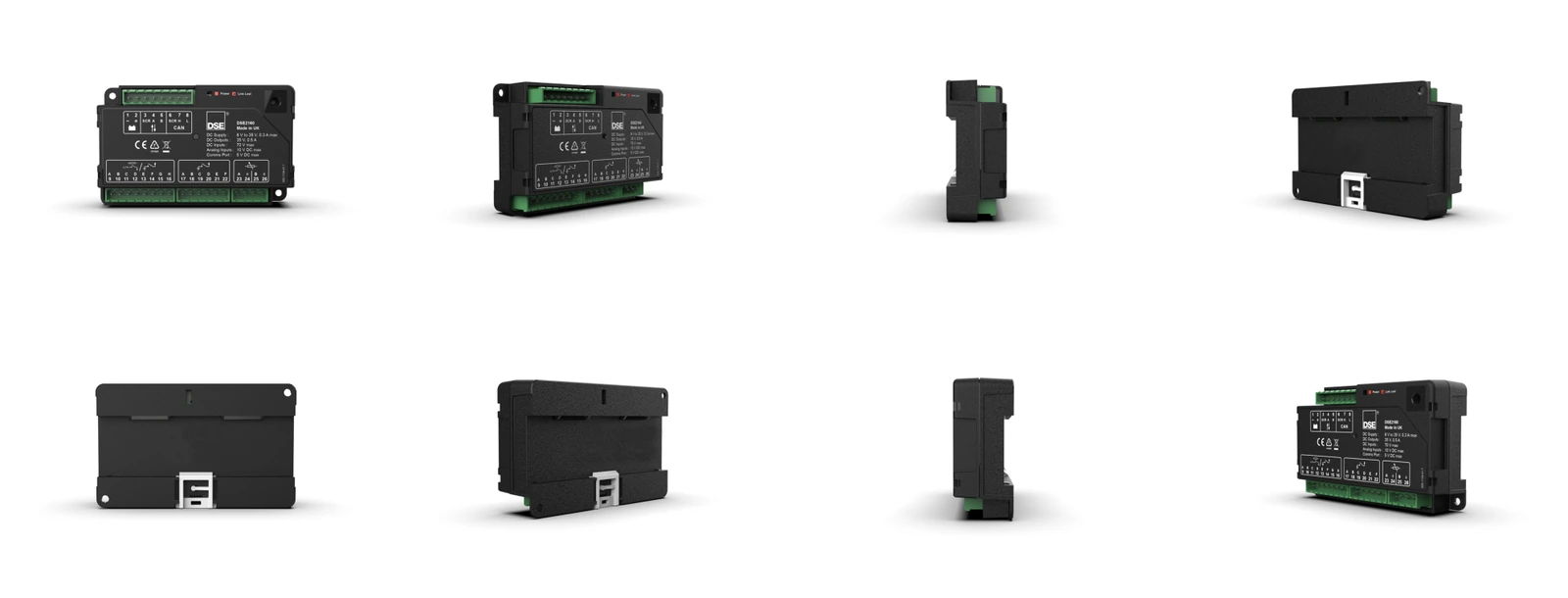

Configurable input/output expansion module for extending DSEG8600 and DSEM-Series applications.
- Eight additional inputs
- Eight configurable digital input/output channels
- Two analogue-capable inputs

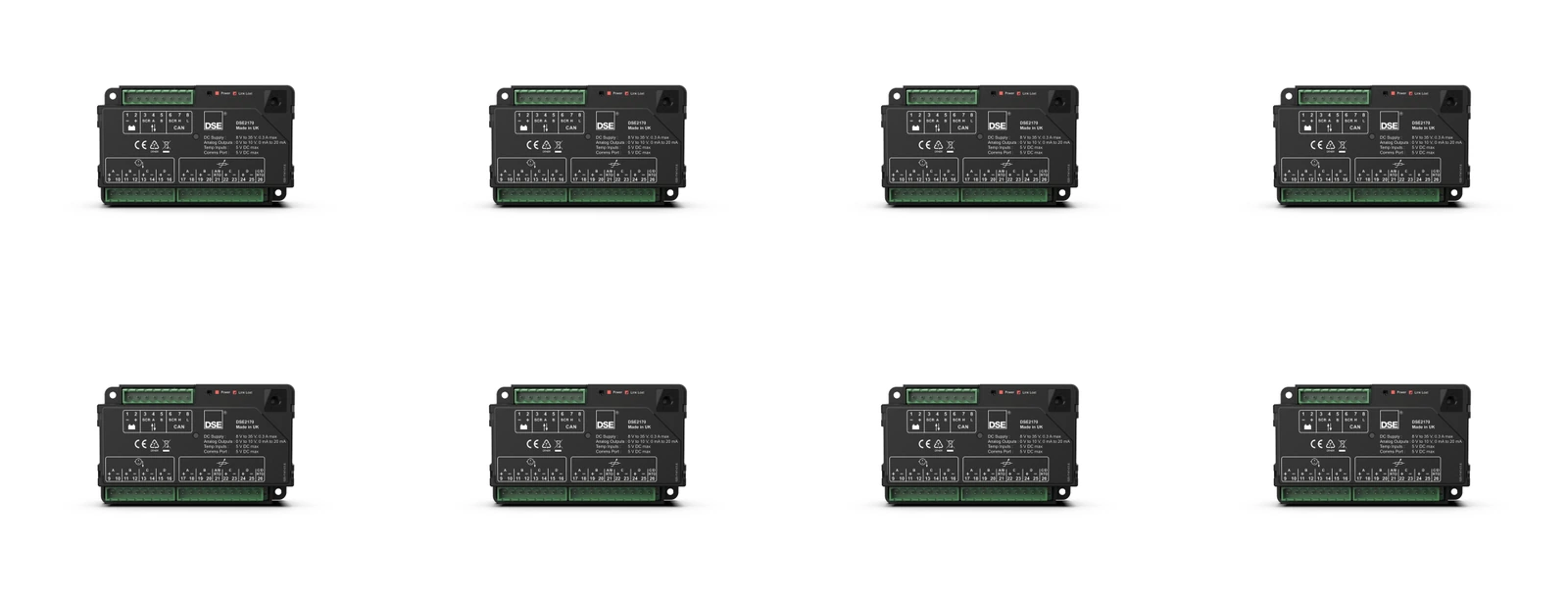

RTD/thermocouple input and analogue-output expansion module for DSEG8600 and supported DSEM platforms.
- Four RTD or thermocouple inputs
- J, K, L, Pt100 and Pt1000 configuration
- Four 0–10 V or 0–20 mA analogue outputs
Specialist remote synchronising and phase-lock support controller for compatible DSE7510 and DSE8610-family controls.
- Remote sync-lock function
- Zero-synchronising and phase-lock support
- DSE describes the intended use as temporary generator installations
TECHNICAL SELECTION
Information needed before controller selection
These are supporting system components rather than standalone generator controllers. Their compatibility must be checked against the selected host controller and project architecture.
- Generator quantity and duty: standby, prime, parallel or load-demand operation
- Generator kVA/kW, voltage, phase, frequency and alternator details
- Engine make/model, ECU or conventional sensors, starting voltage and wiring information
- Breaker arrangement, bus sections, shore or mains source and permitted operating modes
- Required synchronising, kW/kVAr sharing, governor and AVR interfaces
- Alarm, shutdown, metering, I/O, CAN/J1939, Modbus, Ethernet or remote-monitoring requirements
- Panel cut-out, enclosure/IP needs, classification/flag documentation and delivery schedule
PROJECT PROCESS
From vessel data to a controlled quotation
A short engineering review prevents the wrong control role, incompatible cut-out or missing interface from entering the order.
1. Share the power-system arrangement
Send the single-line diagram, generator and engine details, source/bus arrangement and the controller being replaced, if any.
2. Confirm the control role
ERBA reviews start/stop, AMF, synchronising, load-sharing, ATS, bus-tie, display and expansion requirements.
3. Check interfaces and documents
Governor, AVR, CAN, sensors, I/O, communications, panel cut-out and project-document needs are checked before selection.
4. Receive the project quotation
The written quotation confirms the proposed model, configuration scope, included documents, delivery and commercial terms.
GENERATOR CONTROL FAQ
Frequently asked questions
Current-model guidance and the information ERBA needs before confirming a marine generator control solution.
These are supporting system components rather than standalone generator controllers. Their compatibility must be checked against the selected host controller and project architecture. Send the generator, engine, electrical and switchboard details so ERBA can check the correct control role before quotation.
The DSE8610 MKII is ERBA’s core current choice for generator-to-generator synchronising and load sharing. DSE8620 MKII, DSE8660 MKII and DSE8680 cover different shore or mains, ATS and bus-tie roles, while the DSEG8-Series is considered for more complex systems.
Yes, as a technical retrofit enquiry. Send the existing controller model, panel photographs, wiring drawings, engine and alternator details, breaker arrangement and required operating sequence. A replacement is not assumed to be pin-compatible until the interfaces are checked.
The current DSE products shown are generator-control products that may be selected for marine generator projects. Vessel, flag, classification, EMC, enclosure and documentation requirements must be reviewed for the specific installation; the page does not claim blanket marine approval.
Provide generator quantity and rating, voltage/phase/frequency, engine and alternator details, DC supply, sensor or CAN interface, breakers and bus arrangement, shore or mains source, required communications, panel dimensions, existing drawings and delivery location.
Configuration, panel integration, drawings, testing, commissioning support and included accessories vary by project. ERBA’s written quotation will state the exact controller, programming and supply scope; no default commissioning scope is implied by the catalogue page.
TECHNICAL ENQUIRY
Send the generator and switchboard requirements
The form routes the exact page and model context to ERBA Marine. Attach wiring drawings, controller and engine nameplates, single-line diagrams and panel photographs where available.
- Controller selection and compatibility review
- New panel, retrofit and replacement enquiries
- Single-set, AMF, synchronising and G8 projects
- Written scope confirmation before supply
