TENDER AND DECK HANDLING
Yacht, Tender and Davit Cranes Selected for the Load and Stowage Plan
A tender-crane selection must include the full lifted assembly: craft, engine, fuel, equipment and lifting gear. ERBA Marine also reviews the centre of gravity, pick points, launch side, outreach, lift path, garage or deck envelope, controls and available vessel power.
No configuration is described as a rescue, lifesaving, SOLAS, man-riding or personnel-lifting appliance without exact current approval and project documentation.
Total lifted mass and centre of gravity matter
Tender and yacht-deck arrangements are reviewed from the real lifted assembly and stowage plan.
Marine-only review
Only marine-crane families, vessel applications and marine-context media are used.
Load at outreach
Selection starts from each required load and horizontal radius, not a tonnage headline alone.
Project interfaces
Deck, power, controls, stowage and documents are reviewed from verified project data.
Written confirmation
Final configuration, scope and applicable warranty route are stated in ERBA Marine’s quotation.
APPLICATION AND CONFIGURATION ROUTES
Where yacht, tender and davit cranes may fit.
These are project and selection routes, not fixed model or capacity claims.
Tender Handling
Selection from complete tender mass, centre of gravity, pick points, launch side and reach.
- Tender, engine, fuel and gear
- Lifting bridle and pick points
- Deck or garage stowage
Personal Watercraft Handling
Compact craft handling reviewed against cradle, lift geometry and surrounding yacht structure.
- Wet and operating mass
- Cradle or sling arrangement
- Launch and recovery path
Yacht Deck Equipment
General yacht-deck lifting where finish, envelope and control location require a project review.
- Equipment dimensions
- Working and stowed positions
- Power and control interfaces
Project Davit Arrangements
A project enquiry route without assuming rescue, lifesaving or personnel-lifting approval.
- Exact intended duty
- Required approvals and documents
- Vessel and foundation data
SELECTION PRIORITIES
Measure the lifted assembly, not only the tender brochure weight.
Fuel, engine, battery, equipment, cradle and lifting gear can materially change the selection and centre of gravity.
Complete lifted mass
Provide the ready-to-lift condition and a clear weight breakdown.
- Craft and engine
- Fuel, battery and equipment
- Cradle, sling and lifting gear
Centre of gravity
Identify longitudinal and transverse centre of gravity and the verified lifting points.
- Pick-point spacing
- Bridle geometry
- Trim and clearance
Launch and recovery path
Show the launch side, outreach, lift height and obstructions through the full movement.
- Waterline and freeboard
- Rail and superstructure
- Garage or deck opening
Duty classification
A yacht or davit crane is not automatically approved for rescue or personnel lifting.
- State exact intended use
- List approval requirements
- Confirm documents in writing
TECHNICAL ENQUIRY CHECKLIST
What to send for a useful marine-crane review.
Complete load, geometry, vessel, interface and document information helps ERBA Marine identify missing inputs and prepare a more accurate technical and commercial response.
Load, vessel and operating duty
- Application, vessel type, name and length
- Newbuild, retrofit, replacement or parts requirement
- Required load at every required horizontal outreach
- Lift height above deck and depth below deck
- Required slew sector, hook path and deck obstructions
- Stowed envelope, access route and maintenance clearance
- Deck location, foundation or pedestal information and drawings
- Available hydraulic pressure and flow and electrical supply
Deck, power, controls and documents
- Local, remote, winch, hook and integration requirements
- Duty cycle, operating environment and project design basis
- Flag, class, client specification and document requirements
- Delivery location, schedule, plans and clear photographs
- Tender or PWC operating mass including fuel and equipment
- Centre of gravity, lifting points, cradle and bridle details
- Launch side and garage or deck stowage envelope
PROJECT PROCESS
A documented route from lifting duty to coordinated supply.
Marine-crane selection benefits from explicit load cases, interface checkpoints and written scope confirmation.
1. Send the duty data
Share load at each outreach, vessel and deck details, stowed envelope, power, controls and required documents.
2. Clarify interfaces
ERBA Marine identifies missing inputs and coordinates technical clarification for the intended crane family and project.
3. Confirm the proposal
The selected configuration, current load chart, interfaces, documentation, scope, price and delivery are confirmed in writing.
4. Coordinate supply
ERBA Marine remains the customer-facing contact through the supply scope stated in the quotation.
Important: Final capacity, outreach, dimensions, weight, materials, coating, controls, hydraulic or electrical interfaces, documents, applicable warranty route, price, delivery and any installation or commissioning scope are confirmed only in ERBA Marine’s written quotation.

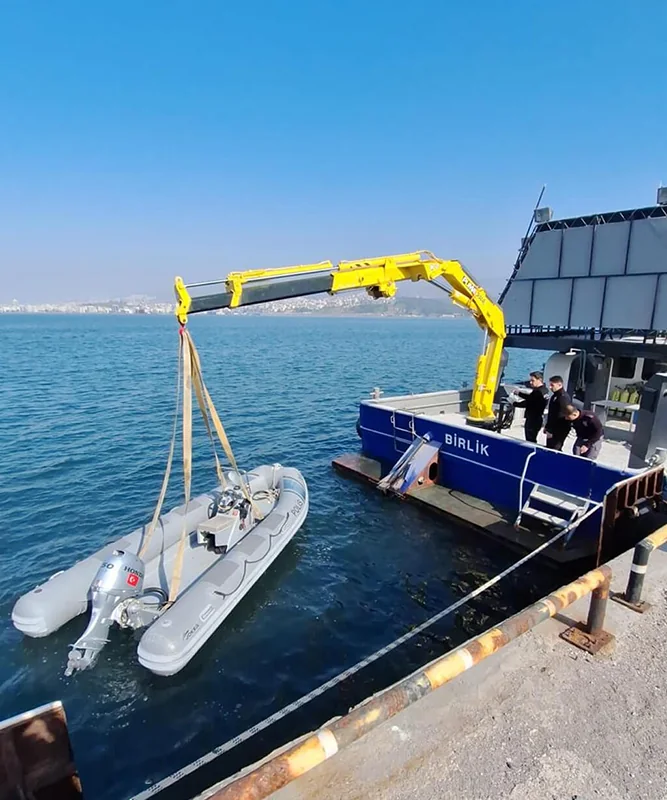

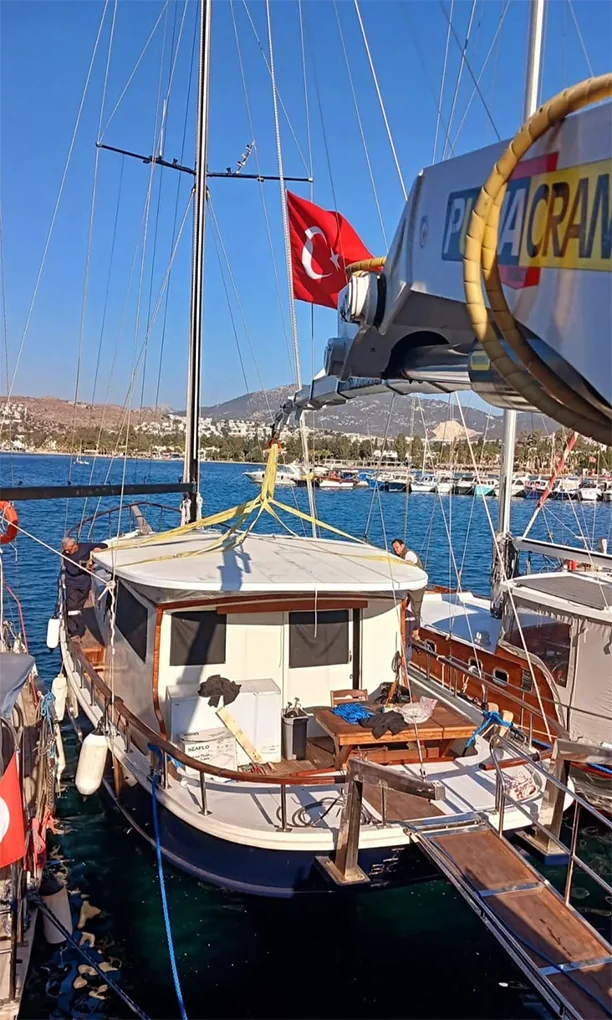

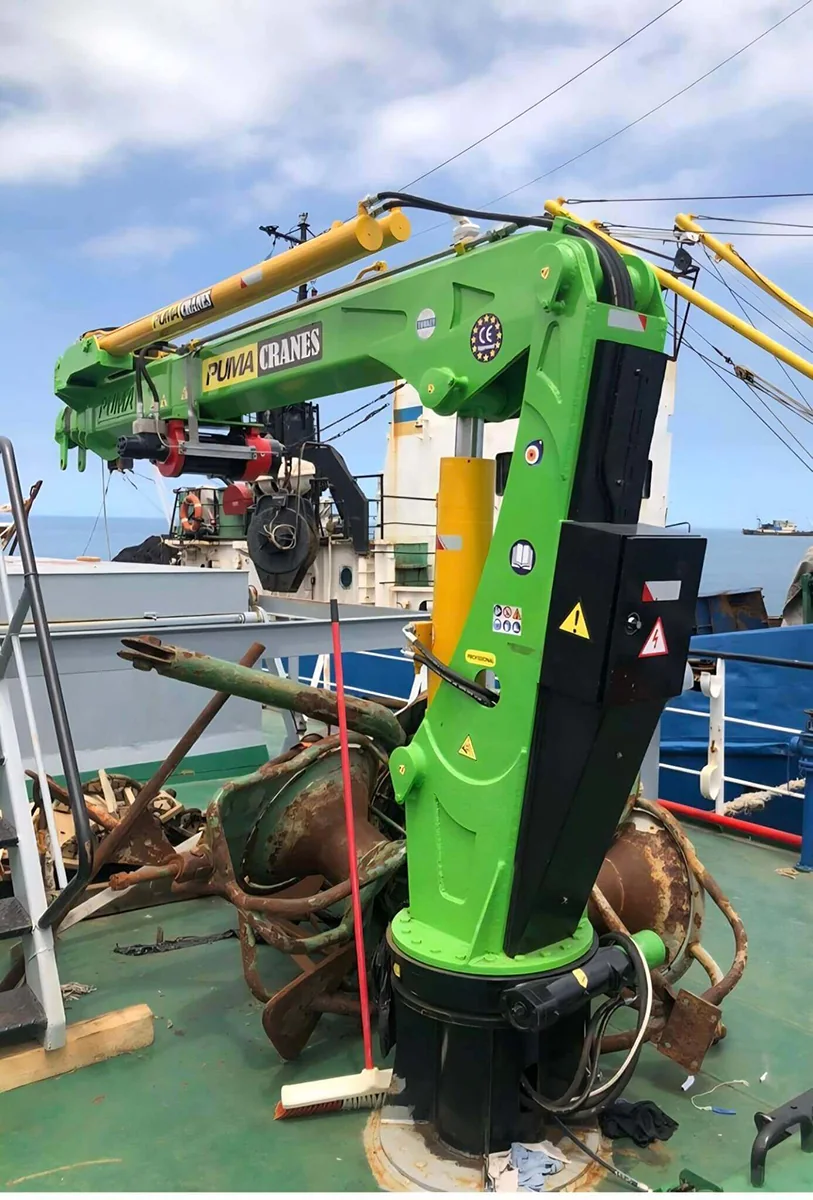

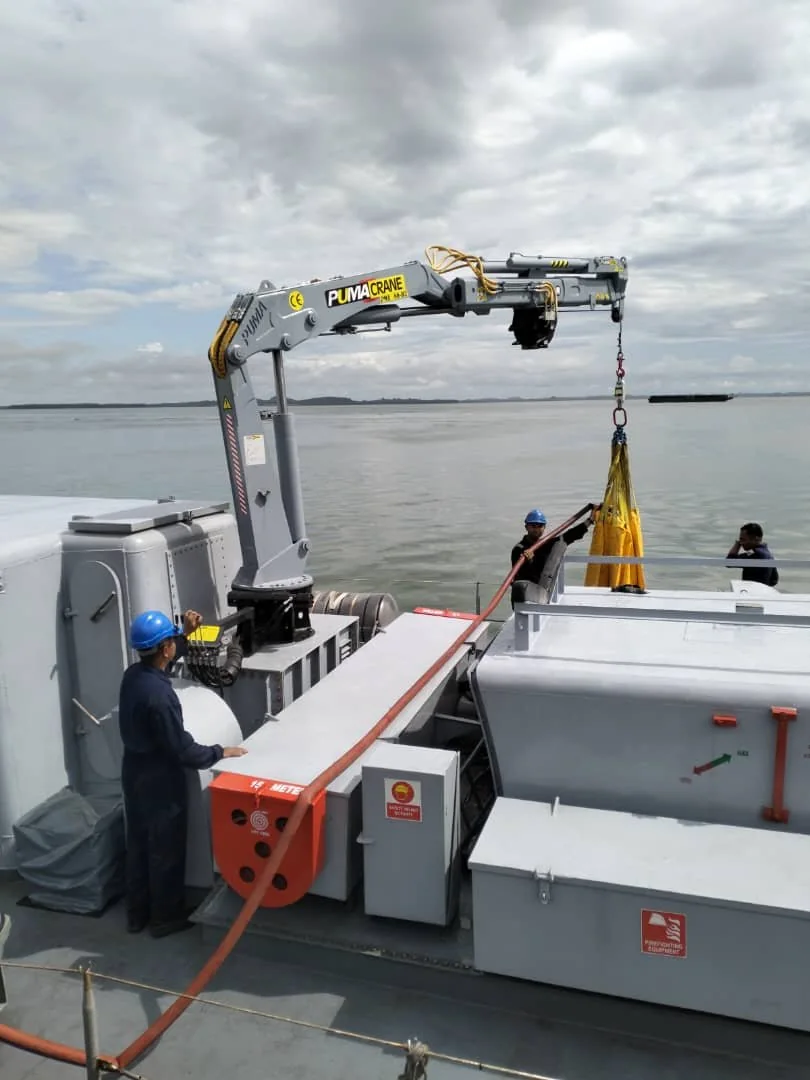

MARINE-ONLY PROJECT EVIDENCE
Marine crane installations and application references.
These curated manufacturer-source images show marine or vessel contexts. The visible arrangement does not establish a model, rating, certification or included project scope.
OFFICIAL MANUFACTURER DEMONSTRATIONS
See marine-crane projects and working arrangements.
Each video is loaded through a native Elementor video widget with a local overlay. Exact crane configuration, load chart, controls and project documentation are confirmed for the selected supply.

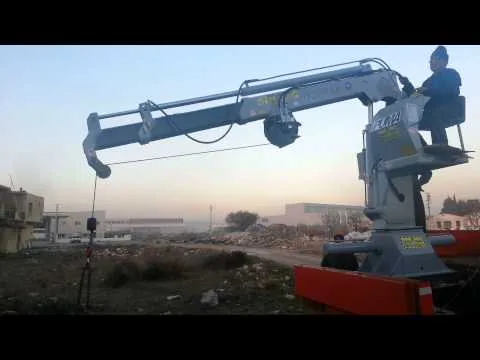

Davit boat-deck crane demonstration
Manufacturer project demonstration. Current specification and project scope require written confirmation.
Hydraulic davit deck-crane demonstration
Manufacturer project demonstration. Current specification and project scope require written confirmation.
Motor-yacht hydraulic crane demonstration
Manufacturer project demonstration. Current specification and project scope require written confirmation.

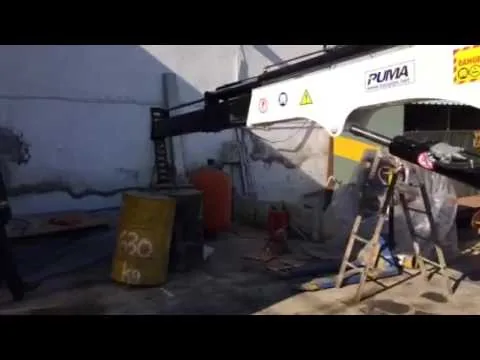

Davit boat-crane demonstration
Manufacturer project demonstration. Current specification and project scope require written confirmation.
Manufacturer source and ERBA Marine coordination
Ozuyan/Puma states that its lifting-equipment manufacturing experience dates to 1966. ERBA Marine manages the customer’s technical enquiry, clarification and supply route from Dubai for UAE and GCC projects. Final configuration, load chart, deck interface, controls, documentation and applicable commercial scope are confirmed in writing.
FREQUENTLY ASKED QUESTIONS
Yacht, Tender and Davit Cranes FAQs
Practical answers for selection, replacement and project planning.
Include the tender or PWC, engine, fuel, batteries, onboard equipment, cradle or sling, lifting bridle and every other item lifted by the crane.
They determine the actual load path, bridle geometry, clearance and stability of the lifted assembly.
Yes. Provide verified opening, stowed and service dimensions, surrounding structure and the full launch or recovery path.
State the intended launch side, freeboard, outreach, lift height and project operating conditions. The exact design basis requires technical review.
No. That duty requires exact current approval, engineering and project documentation; it is not assumed from the crane type.
PROJECT-SPECIFIC ENQUIRY
Request a Yacht, Tender and Davit Cranes review from ERBA Marine.
Send the strongest available load, outreach, deck, power, control and documentation information. ERBA Marine will identify missing data before quotation.
- Attach deck plans, crane drawings, load charts and clear photographs.
- State every required load together with its horizontal radius.
- Confirm the vessel power interfaces and stowed-space limits.
- Final configuration and scope are confirmed in writing.
