HYDRAULIC TUNNEL SYSTEMS
Hydraulic Tunnel Thrusters
Compare current hydraulic tunnel-thruster reference families by published power, thrust, tunnel size and duty guidance. ERBA Marine coordinates the thruster with the available pressure, flow, return, cooling, filtration and control system.
CURRENT REFERENCE FAMILIES
Compare Hydraulic Tunnel Thrusters
Each pictured card opens a dedicated page with its gallery, source-safe description, published facts, current product-code variants and quotation boundaries.

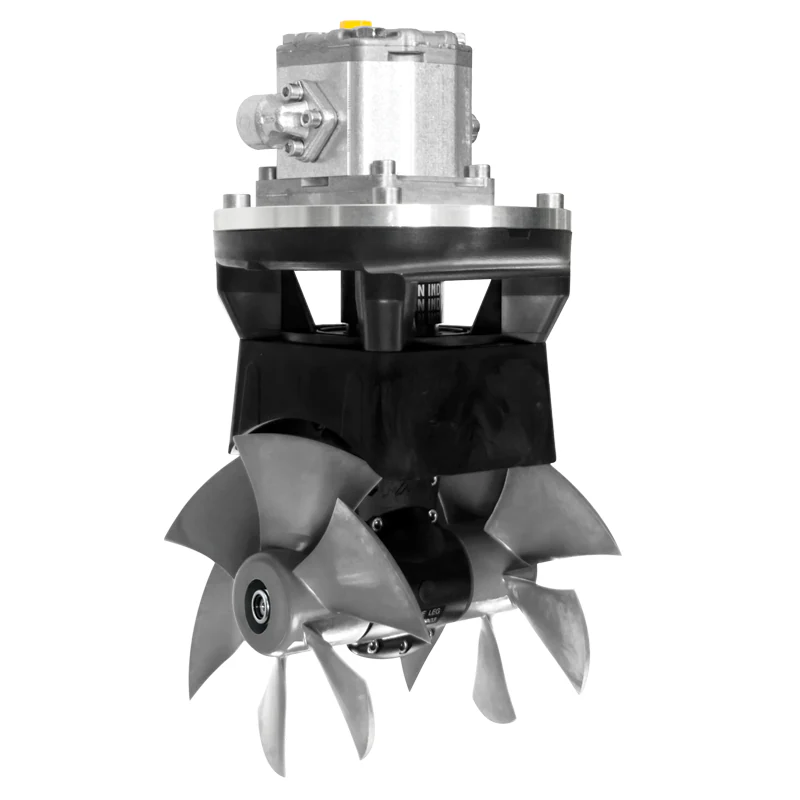

HYD125 is a hydraulic tunnel-thruster family for project-engineered installations. Pressure, flow, cooling, duty and controls must be sized for the exact variant and vessel.

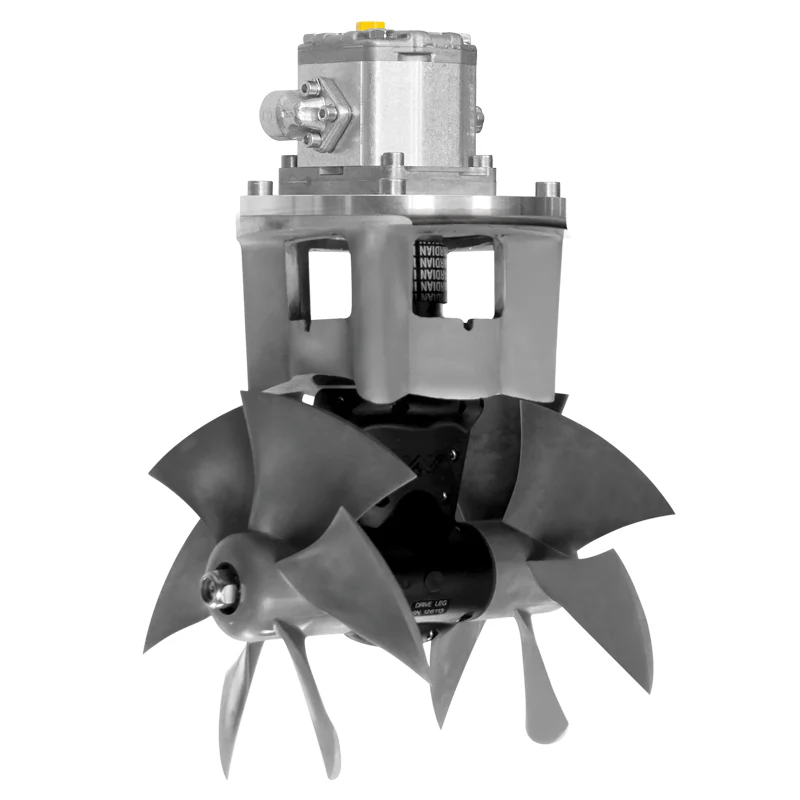

HYD225 is a hydraulic tunnel-thruster family for project-engineered installations. Pressure, flow, cooling, duty and controls must be sized for the exact variant and vessel.

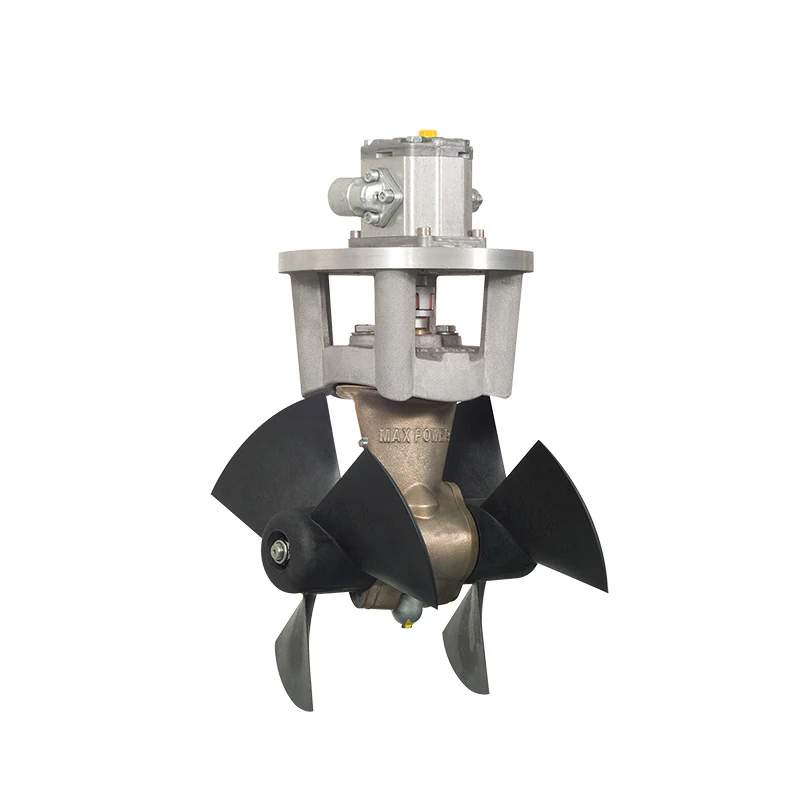

HYD300 is a hydraulic tunnel-thruster family for project-engineered installations. Pressure, flow, cooling, duty and controls must be sized for the exact variant and vessel.

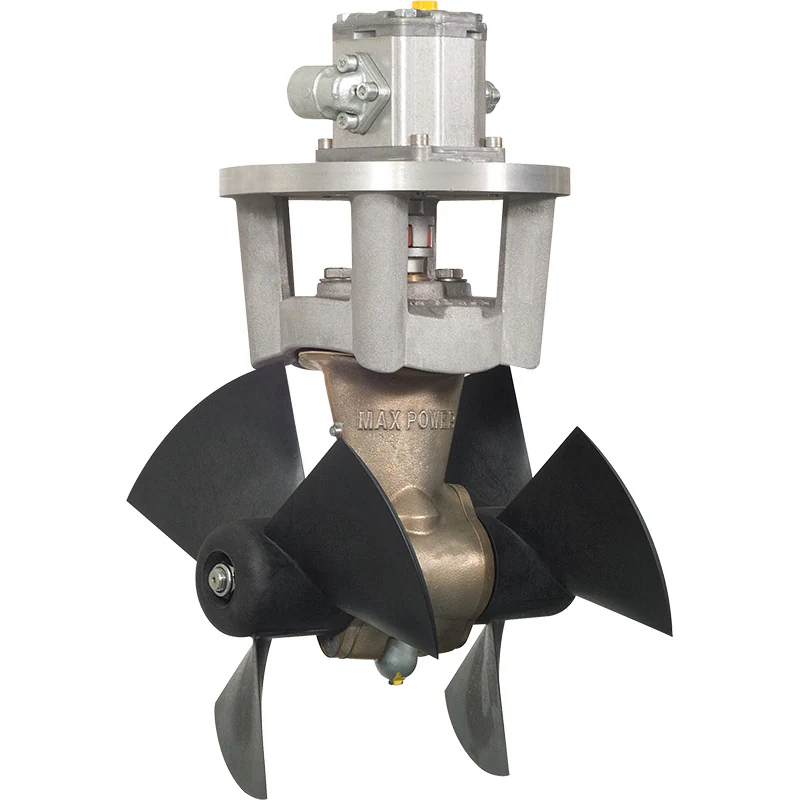

HYD325 is a hydraulic tunnel-thruster family for project-engineered installations. Pressure, flow, cooling, duty and controls must be sized for the exact variant and vessel.

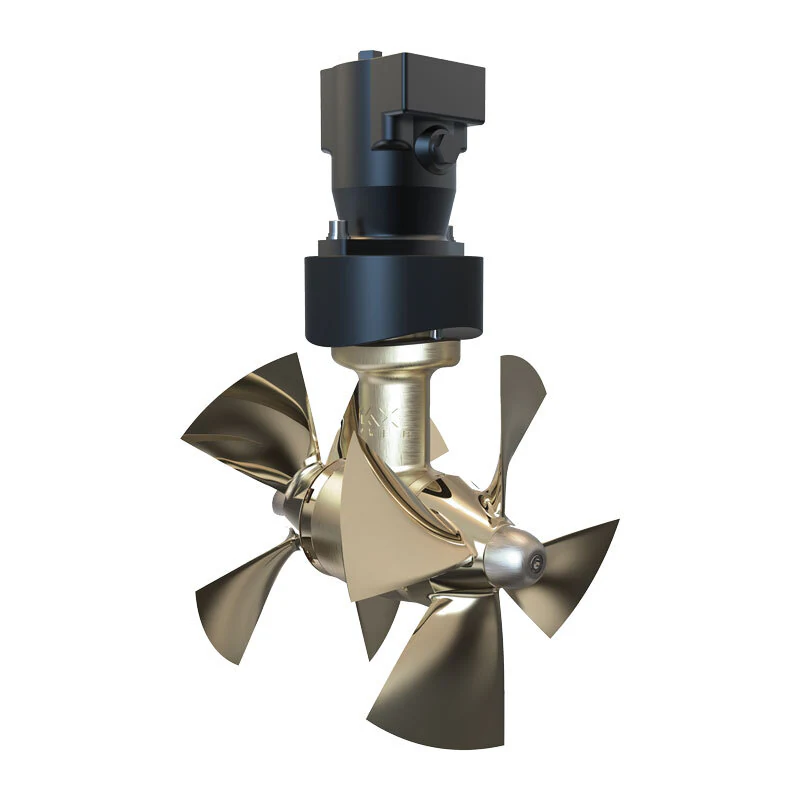

HYD550 is a hydraulic tunnel-thruster family for project-engineered installations. Pressure, flow, cooling, duty and controls must be sized for the exact variant and vessel.

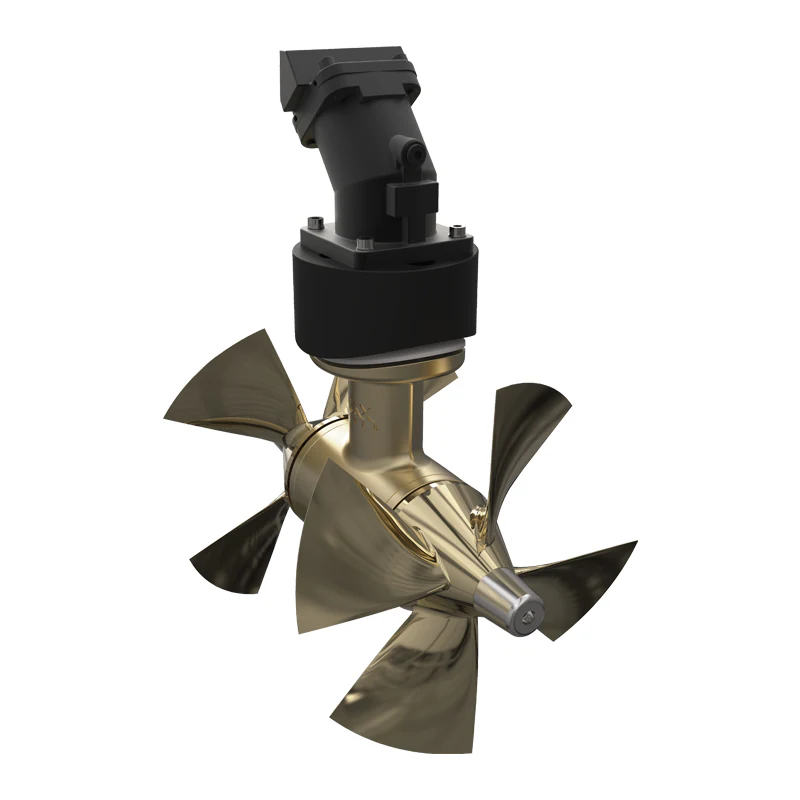

CT1000 HYD is a hydraulic tunnel-thruster family for project-engineered installations. Pressure, flow, cooling, duty and controls must be sized for the exact variant and vessel.
SELECTION INPUTS
Select within the Hydraulic Tunnel Thrusters range
Published output assumes a suitable hydraulic supply and installation. Confirm continuous and peak flow, working pressure, return restriction, reservoir, cooling, filtration and the vessel duty profile.
Vessel & duty
Define hull, displacement, windage, operating conditions and manoeuvring duty.
- Vessel type, newbuild / retrofit / replacement and operating area
- Length overall, beam, draft, displacement and loading condition
- Hull material, thickness and available structural drawings
- Windage profile, superstructure and expected manoeuvring conditions
Installation
Confirm tunnel or retractable geometry, immersion, structure, drainage and access.
- Bow, stern or combined requirement and desired operating duty
- Existing or proposed tunnel diameter, position, immersion and clearances
- Available internal space, access, drainage and maintenance route
- DC voltage and battery capacity or AC supply, phase and frequency
Power & scope
Coordinate electrical or hydraulic supply, controls, documents and delivery boundary.
- Hydraulic pressure, flow, return, cooling and filtration if available
- Control stations, joystick, proportional control and remote requirements
- Flag, class, client documentation and inspection requirements
- Delivery location, schedule and installation / commissioning boundary
PROJECT PROCESS
From vessel data to written quotation
The model code is a reference starting point. The final supply is fixed only after the interfaces, duty and written commercial scope are reviewed.
1. Send vessel data
Share the general arrangement, dimensions, displacement, hull details, windage, available power and intended duty.
- Newbuild or retrofit
- Bow, stern or both
- Available drawings and photographs
2. Review arrangement
ERBA checks tunnel or retractable geometry, immersion, structure, power source, controls and service access.
- Space and interfaces
- Duty and environment
- Missing-data list
3. Select supply route
A supported manufacturer model or project-configured package is shortlisted for technical and commercial review.
- Make and model
- Accessories and documents
- Installation boundary
4. Confirm quotation
The written quotation confirms the exact configuration, warranty path, price, delivery and included services.
- No assumed inclusions
- Compatibility checkpoints
- Final written scope
FREQUENTLY ASKED QUESTIONS
Hydraulic Tunnel Thrusters questions
These answers preserve the technical-review and written-quotation boundary for every reference route.
No. The detailed catalogue pages use current Max Power models as clear reference examples because ERBA Marine deals with this equipment, but ERBA can also review other supported manufacturers or a project-configured package. The quotation confirms the final make and model.
No. Published values are manufacturer-reference data and depend on the exact variant, voltage or hydraulic supply, installation geometry, immersion and operating conditions. ERBA Marine confirms the quoted configuration only after technical review.
Yes. Send the existing model and nameplate, tunnel or hull-opening dimensions, vessel drawings, power information, controls, photographs and the required new duty.
Continuous or extended duty must not be assumed. Duty limits depend on the exact electric or hydraulic system, cooling, batteries or power pack, controls, installation and current manufacturer instructions.
Published output assumes a suitable hydraulic supply and installation. Confirm continuous and peak flow, working pressure, return restriction, reservoir, cooling, filtration and the vessel duty profile. Send the vessel and installation data so ERBA Marine can review the suitable reference family and supported supply route.
TECHNICAL ENQUIRY
Request a review for Hydraulic Tunnel Thrusters
Send the vessel, installation, power and duty information available. ERBA Marine will confirm the missing data and define the quoted make, model and supply boundary.
