Home / Products / Marine HVAC Systems / Fresh-Air and Central Marine HVAC / PDU Marine Central Package Units
COOLMAR PDU SERIES
PDU Marine Central Packaged Air-Conditioning Units
Coolmar PDU units combine direct-expansion refrigeration and central air handling in project-built marine packages. ERBA Marine checks the total cooling and heating load, air volume and pressure, design climate, seawater or condenser arrangement, power supply, duct interfaces and access.
Published values and visuals are selection references. Current configuration and applicable warranty terms are confirmed in ERBA Marine’s written quotation.
Central packaged DX air conditioning
Project-selected cooling, heating and air delivery in one central equipment family.
Authorized GCC Dealer
Coolmar product selection and supply coordinated by ERBA Marine.
Project-Led Review
Loads, utilities, space and interfaces checked from verified data.
Newbuild & Retrofit
Support for planned projects, refits and replacement scopes.
Current Configuration
Specifications and warranty terms confirmed in quotation.
Authorized Coolmar dealer for the GCC
ERBA Marine manages regional product selection, technical clarification, quotation and supply for Coolmar marine HVAC and refrigeration equipment.
PUBLISHED SELECTION REFERENCE
Model range and solution choices
Use the published lineup to identify the closest duty. ERBA Marine confirms the current production model after reviewing the vessel and installation data.

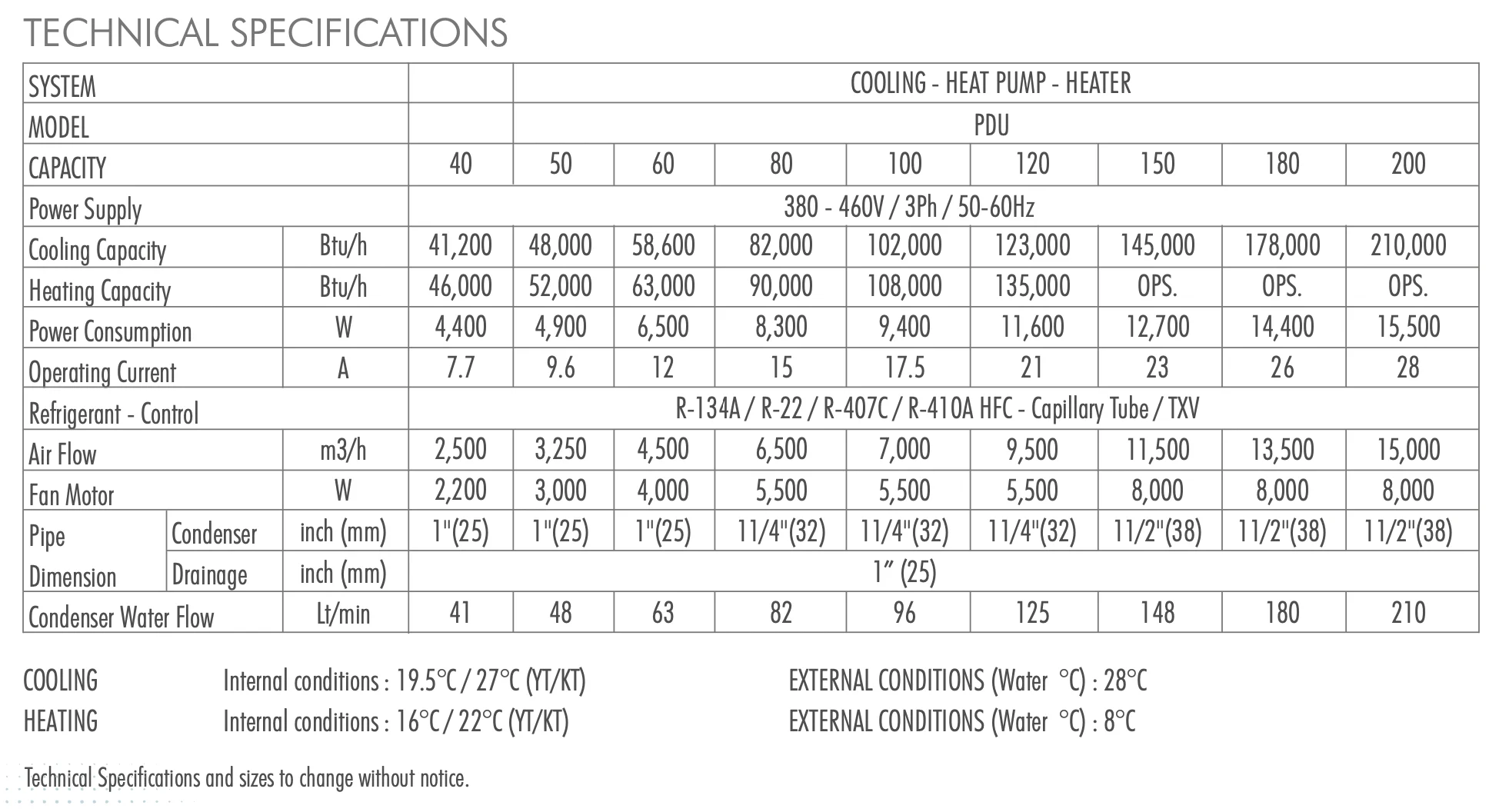

PDU 40 to PDU 80
Published cooling references from 41,200 to 82,000 BTU/h.
- PDU 40 — 41,200 BTU/h
- PDU 50 — 48,000 BTU/h
- PDU 60 — 58,600 BTU/h
- PDU 80 — 82,000 BTU/h
PDU 100 to PDU 150
Published mid-range package references.
- PDU 100 — 102,000 BTU/h
- PDU 120 — 123,000 BTU/h
- PDU 150 — 145,000 BTU/h
PDU 180 and PDU 200
Largest published cooling references.
- PDU 180 — 178,000 BTU/h
- PDU 200 — 210,000 BTU/h
- Heating entries for these legacy rows require current confirmation
Selection note: Model references, nominal capacities and legacy drawings help identify the closest family. Final voltage, refrigerant, dimensions, controls, accessories and performance are confirmed from current Coolmar documentation before supply.
OFFICIAL COOLMAR VISUALS

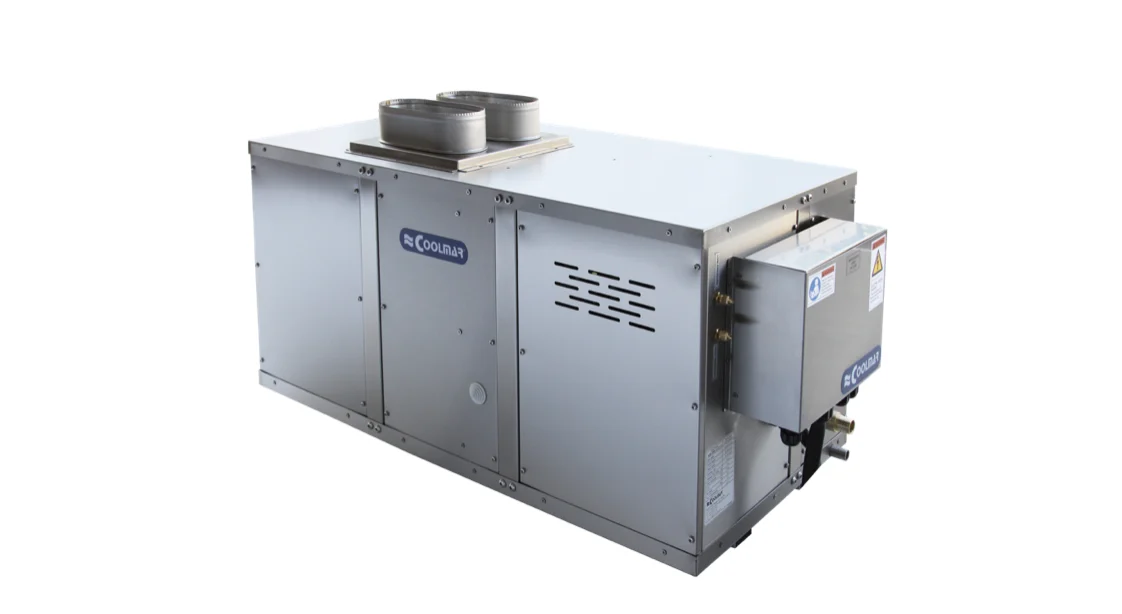

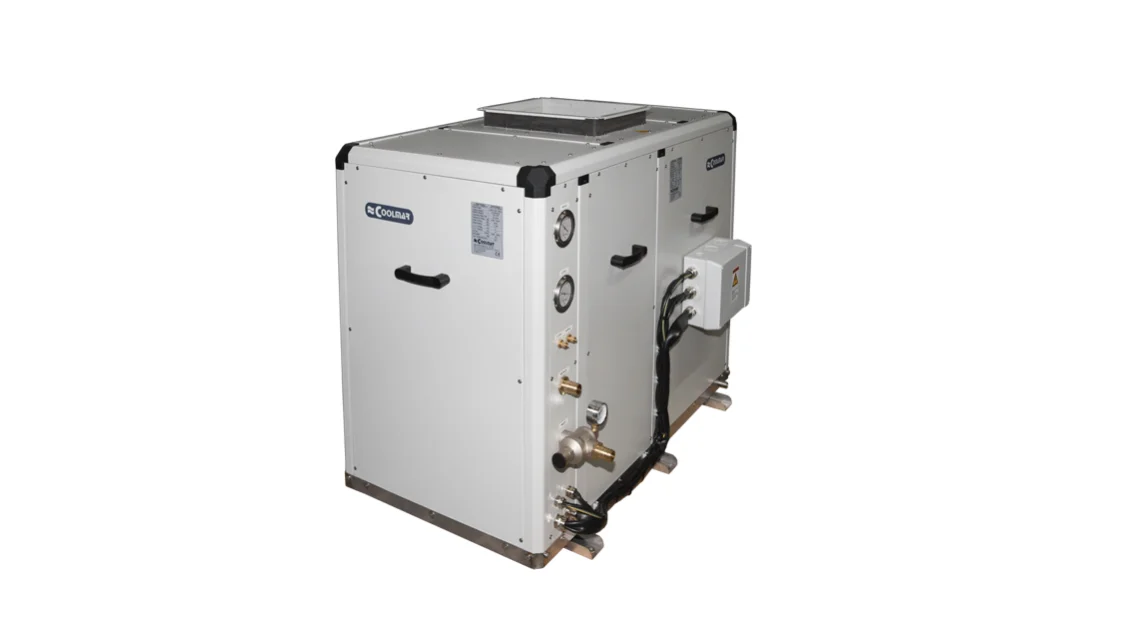

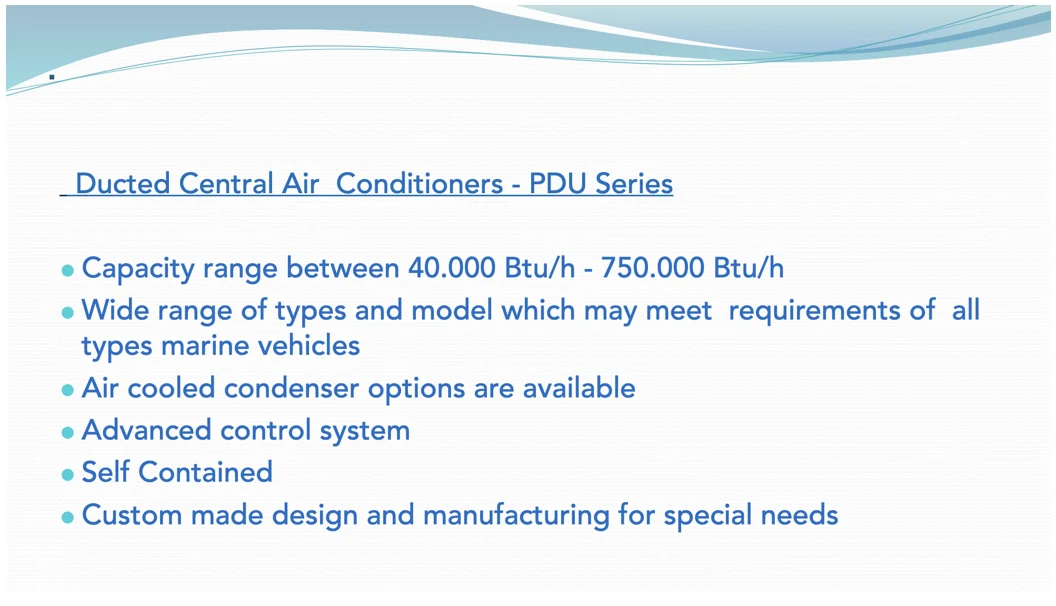

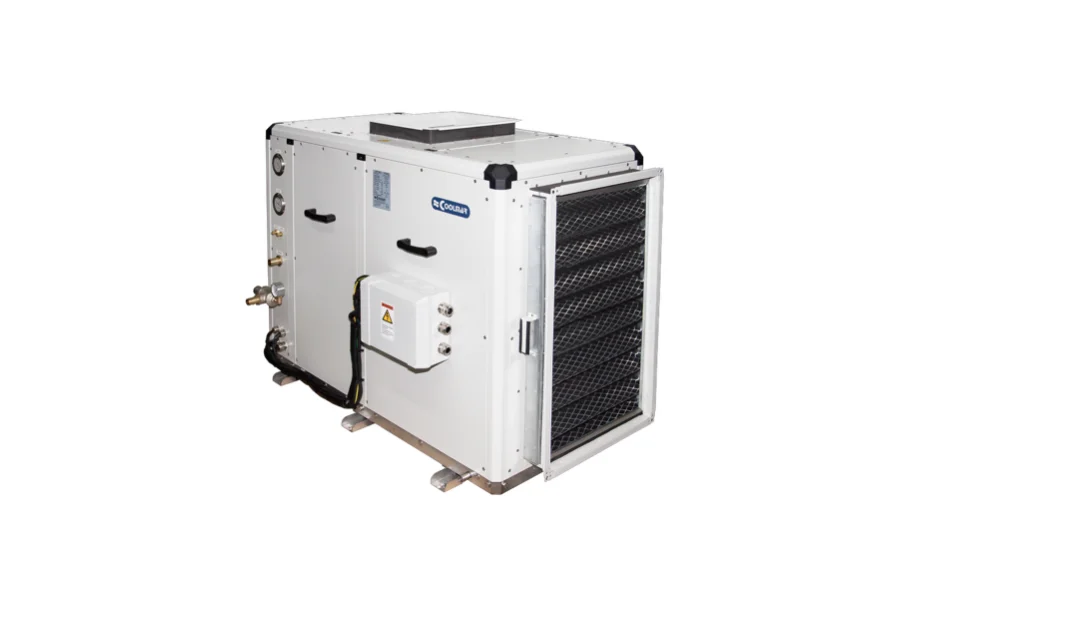

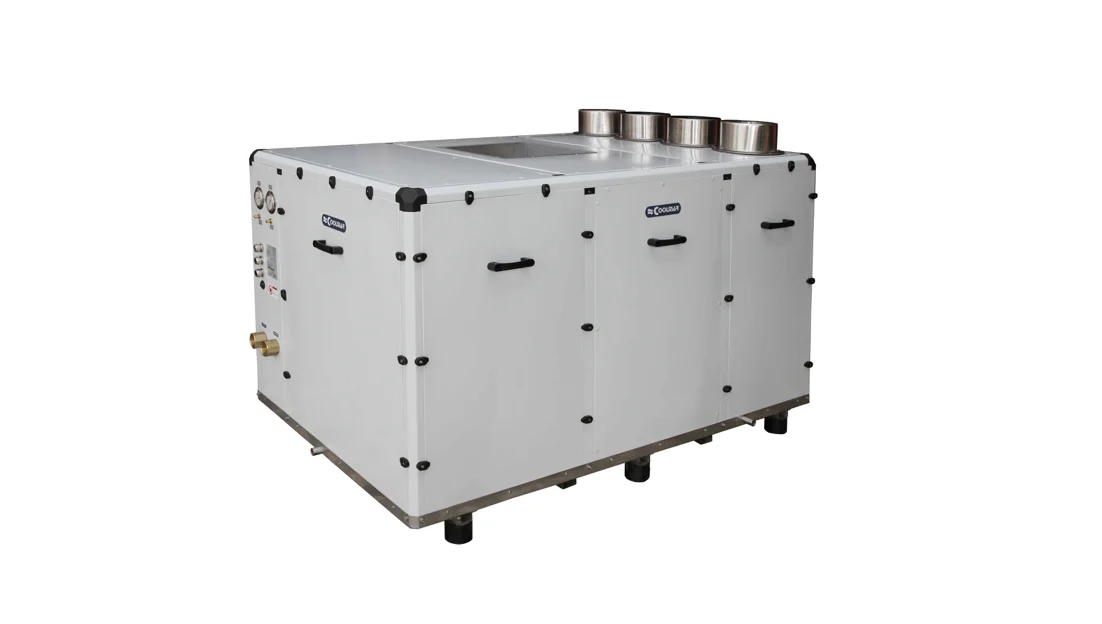

Equipment, components and installation references
These official manufacturer images help explain the available arrangements. Final appearance, components and dimensions follow the confirmed quotation.
TECHNICAL DOWNLOADS
Brochures and data references
Download the official manufacturer material associated with this range. Where old and current documents differ, the written quotation and approved drawing govern.
Coolmar PDU Marine Central Package Brochure
Official Coolmar technical reference. Use it for preliminary review; ERBA Marine confirms the current supplied configuration.
- Manufacturer document
- Model and installation reference
- Current details confirmed at quotation
Coolmar Marine HVAC Solutions Catalogue
Official Coolmar technical reference. Use it for preliminary review; ERBA Marine confirms the current supplied configuration.
- Manufacturer document
- Model and installation reference
- Current details confirmed at quotation
TECHNICAL ENQUIRY CHECKLIST
What to send for a useful HVAC review.
Complete operating, load and interface information reduces unnecessary clarification and helps ERBA Marine prepare a more accurate technical and commercial response.
Vessel, spaces & duty
- Vessel type, length, operating profile and project location
- Newbuild, refit, retrofit or replacement scope
- Required cooling and heating duty or existing unit capacity
- Design ambient-air and seawater temperatures
Utilities, interfaces & drawings
- Available voltage, phase and frequency
- Maximum equipment space and service-access route
- Air, water, refrigerant, drain and control interfaces
- Drawings, photographs, documentation needs and required delivery date
PROJECT PROCESS
A clear route from HVAC enquiry to coordinated supply.
Marine HVAC selection benefits from documented loads, design conditions and interface checkpoints.
PROCESS
1. Send the project data
Share the vessel, spaces, duty, design conditions, utilities, drawings and required scope.
PROCESS
2. Clarify the interfaces
ERBA Marine identifies missing inputs and checks capacity, space, air, water and electrical interfaces.
PROCESS
3. Confirm the proposal
Configuration, current specifications, documentation, warranty terms, price and delivery are agreed.
PROCESS
4. Coordinate supply
ERBA Marine remains the customer-facing contact through the confirmed supply scope.
Important: Published ranges and examples are selection guidance. Final capacity, dimensions, voltage, refrigerant, materials, controls, documentation, warranty terms, price and delivery are confirmed only in ERBA Marine’s written quotation.
FREQUENTLY ASKED QUESTIONS
PDU Marine Central Package Units FAQs
Practical answers for model selection, installation planning and quotation.
It is a central packaged direct-expansion marine air-conditioning unit that combines refrigeration and central air handling for a ducted system.
The catalogue lists PDU 40, 50, 60, 80, 100, 120, 150, 180 and 200. Final duty, air volume, pressure and construction are project-confirmed.
The legacy table uses an ambiguous abbreviation for PDU 150, 180 and 200 heating. ERBA Marine confirms the current heating scope directly with Coolmar instead of interpreting it.
No. Published model data and drawings are selection references. ERBA Marine confirms the current capacity, voltage, refrigerant, dimensions, controls, accessories and documentation in the written quotation.
Yes. Send the existing make and model, rated duty, voltage, overall dimensions, interface sizes, clear photographs and the reason for replacement.
A non-standard capacity, layout or equipment format can be reviewed when a listed range does not suit the vessel. Feasibility and the final specification require engineering confirmation.
ERBA Marine is an authorized Coolmar dealer for the GCC and manages regional selection, technical clarification, quotation, supply and the applicable warranty route stated in the quotation.
MODEL-SPECIFIC ENQUIRY
Request a PDU Marine Central Package Units review.
Send the closest model or family together with the vessel, load, design conditions, power supply, space and interface data. ERBA Marine will identify missing inputs before quotation.
- Attach drawings, schedules and clear photographs.
- State design ambient-air and seawater conditions.
- Confirm voltage, phase, frequency and installation envelope.
- Current configuration and warranty route are confirmed in writing.
