SIX CURRENT OPERATOR REFERENCES
Marine Operator and Helm Seats
Compare the six operator and helm seat references on Pilot’s current English marine index. Suspension type, adjustments, trim, controls, headrest, pedestal, rail and footrest status remain model-specific.
Do not treat a feature shown on one model as standard on another. Open the dedicated model page for the exact current table and dimension drawing.
Pilot Marine Seating
Large official product imagery is used for preliminary comparison; the selected configuration is confirmed in writing.
Current marine range
Only the 13 entries on Pilot’s current English marine index are treated as current range pages.
Exact option status
Standard, option and not-available statements follow the current model table without simplification.
Large source imagery
Product photographs and dimension drawings are shown separately at source-appropriate size.
Written configuration
Final configuration, documents and applicable warranty route are confirmed in the quotation.
Pilot marine seating, selected and supplied through ERBA Marine
ERBA Marine coordinates model selection, configuration review, supply and after-sales routing for Pilot marine seating. Final trim, controls, suspension, pedestal, mounting, approvals, applicable warranty terms and documentation are confirmed in ERBA Marine’s written quotation.
Manufacturer identity: Pilot manufactures the listed seating. This page does not claim that ERBA Marine manufactures the seats, is an authorised Pilot dealer, or provides a fixed website warranty.
CURRENT PUBLISHED RANGE
Operator & Helm Seats
Open a model page for the complete current standard, option and not-available table plus a separate large dimension drawing.
MP1300 - X'Treme Premium Marine
Current air-suspension operator-seat reference with model-specific standard and optional features.
- Air suspension: Standard
- Quick release: Standard
- Weight adjustment: Automatic up to 150 kg

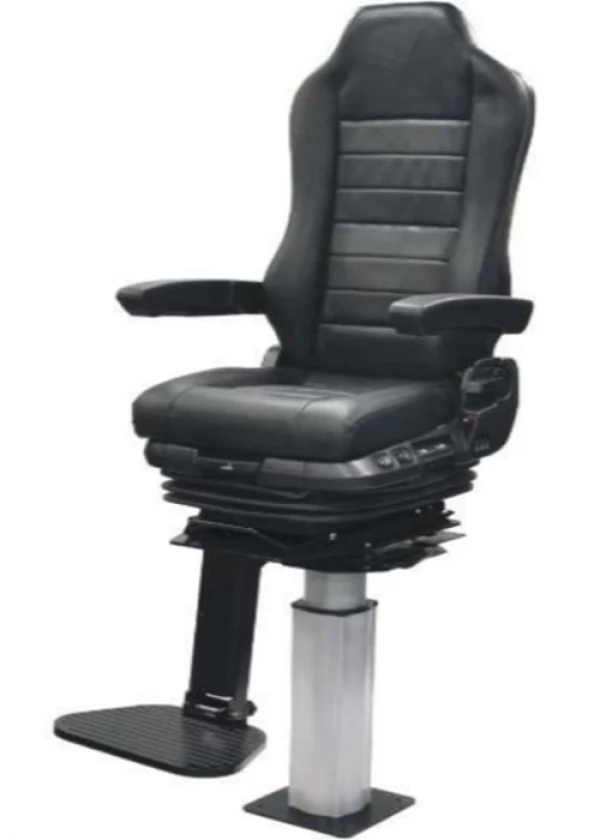

MP1202 - X'Treme Marine
Current X’Treme Marine operator-seat reference with the published MP1202 configuration table.
- Air suspension: Standard
- Quick release: Standard
- Weight adjustment: Automatic up to 150 kg
MP1201/M80H3 - X'Treme Smart Marine
Mechanical-suspension helm-seat reference with air-suspension and compressor options.
- Mechanical suspension: Standard
- Weight adjustment: Manual up to 150 kg
- Suspension stroke: 80 mm

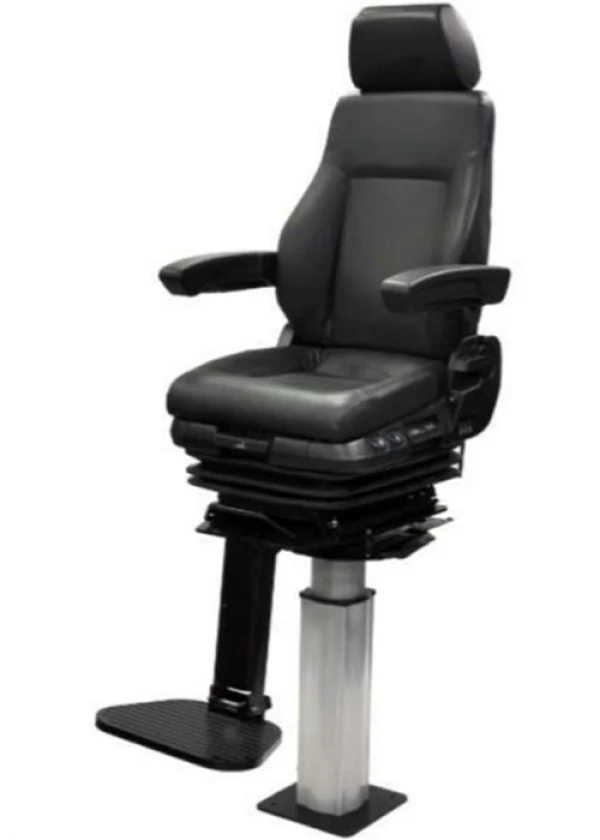

MP1102 - Supreme Marine
Air-suspension Supreme Marine operator-seat reference with a standard adjustable headrest.
- Air suspension: Standard
- Quick release: Standard
- Weight adjustment: Automatic up to 150 kg

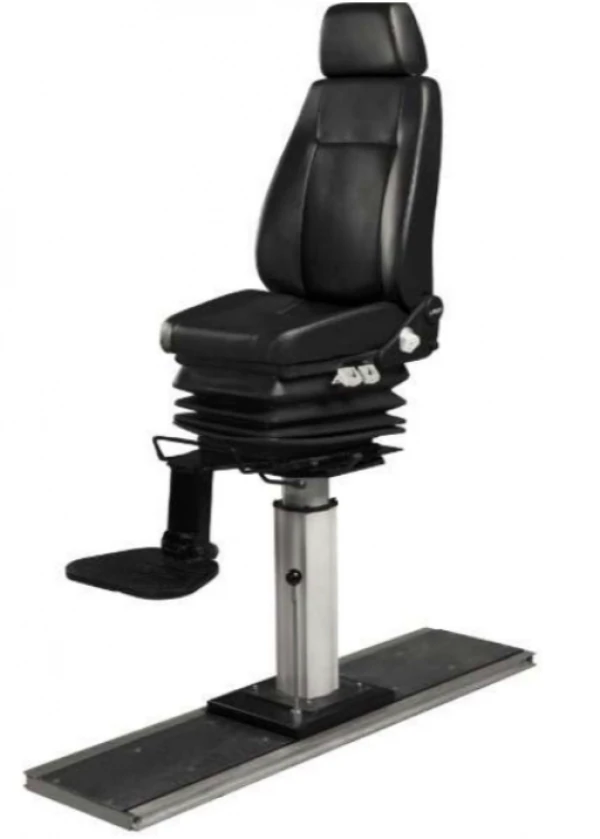

MP1098/H6 - 1098 Lift Marine
Height-adjustment helm-seat reference without a published suspension-type claim.
- Height adjustment: 60 mm
- Slide travel: 170 mm
- Adjustable headrest: Standard

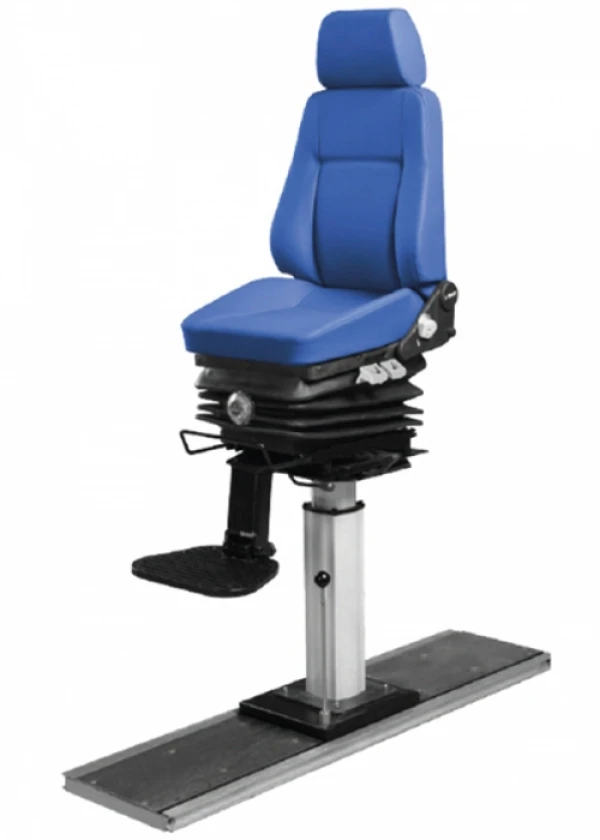

MP488/M100H - 488 Mechanical Marine
Mechanical-suspension marine helm-seat reference with published 100 mm standard stroke.
- Mechanical suspension: Standard
- Weight adjustment: Manual up to 150 kg
- Suspension stroke: 100 mm
Current-range rule: MP26/MN60 and MYP9144 appear only in the manufacturer catalogue and are not presented as current ERBA model pages without written confirmation.
TECHNICAL SELECTION DATA
What ERBA Marine needs before confirming a marine seat
Good seat selection starts with verified duty, mounting, space, power, configuration and document requirements.
Vessel, duty and existing installation
- Vessel type, use, length and operating area
- Operator or passenger duty and required seat quantity
- Newbuild, refit, retrofit or replacement requirement
- Existing seat make, model, mounting pattern and photographs
- Available width, depth, height and service access
- Required suspension, adjustment and control-side preferences
Configuration, documents and delivery
- Available 12 V or 24 V supply where a compressor is requested
- Trim material, colour and interior or exterior location
- Pedestal, turn-table, mounting rail and footrest requirements
- Required drawings, approval evidence and project documents
- Delivery country, port and required schedule
CLEAR PROJECT ROUTE
From seat requirement to confirmed supply
No model, option or mounting accessory is treated as a fit until the vessel and current configuration are reviewed.
1. Send vessel and seat data
Share duty, quantity, mounting, space, power, trim, pedestal, approval and delivery requirements.
2. Review the closest model
ERBA Marine checks the current published model, standard equipment, options and open configuration points.
3. Confirm the proposal
The quotation records the selected model, trim, controls, pedestal or rail, documentation and applicable warranty route.
4. Coordinate supply
ERBA Marine remains the customer-facing contact for the supply and after-sales route stated in writing.
FREQUENTLY ASKED QUESTIONS
Operator & Helm Seats FAQs
Practical answers for model comparison, mounting, configuration and quotation.
Start with vessel duty, ride environment, required adjustment, available 12 V or 24 V power, operator preferences, seat envelope and current model options.
No. The current tables mark the built-in compressor as an option on the applicable models.
No. The six current operator-seat tables list left-hand controls as standard and right-hand controls as an option.
The current tables mark both 3-point and 2-point belts as not available on the six current MP models.
No. Pilot’s pages state that materials flammability conforms to IMO standards. ERBA Marine does not broaden that statement into a blanket seat certification.
Photographs help, but the existing model, mounting dimensions, pedestal or rail, available space, power, control side and duty data are normally needed.
Send the marine seat requirement
Accurate seat, vessel and mounting data helps ERBA Marine compare the current model, options and interfaces and prepare a useful quotation.
- State operator or passenger duty and quantity.
- Share existing seat, mounting and verified space data.
- Confirm suspension, power, trim, controls and accessories.
- Attach drawings, approval requirements and photographs.
Operator & Helm Seats Technical Enquiry
Fields marked * are required. Existing-seat photographs, mounting details and drawings are strongly recommended.
Your technical and contact information is sent only to ERBA Marine’s website enquiry recipients for follow-up.
