AIR-SUSPENSION HELM SEAT
Pilot MP1202 X'Treme Marine Helm Seat
The current MP1202 table publishes the same core technical entries as MP1300: standard air suspension, automatic weight adjustment up to 150 kg, 60 mm suspension stroke and 170 mm slide travel. ERBA Marine does not invent a performance difference; the selected model and configuration are confirmed in writing.
The image identifies the published seat reference. Final trim, controls, suspension, pedestal, mounting, approval evidence and included scope are confirmed in writing.
MP1202 - X'Treme Marine
Current X’Treme Marine operator-seat reference with the published MP1202 configuration table.
Current marine range
Only the 13 entries on Pilot’s current English marine index are treated as current range pages.
Exact option status
Standard, option and not-available statements follow the current model table without simplification.
Large source imagery
Product photographs and dimension drawings are shown separately at source-appropriate size.
Written configuration
Final configuration, documents and applicable warranty route are confirmed in the quotation.
Pilot marine seating, selected and supplied through ERBA Marine
ERBA Marine coordinates model selection, configuration review, supply and after-sales routing for Pilot marine seating. Final trim, controls, suspension, pedestal, mounting, approvals, applicable warranty terms and documentation are confirmed in ERBA Marine’s written quotation.
Manufacturer identity: Pilot manufactures the listed seating. This page does not claim that ERBA Marine manufactures the seats, is an authorised Pilot dealer, or provides a fixed website warranty.
EXACT MODEL TABLE
MP1202 - X'Treme Marine published configuration
The entries below follow Pilot’s current model page. Standard, option and not-available statements are not transferred between models.
Standard
Published as standard on this exact model
Option
Published as an option on this exact model
Not available
Published as not available on this exact model
Published reference
A stated value or manufacturer wording, subject to current-document confirmation
Feature or Published Reference
Current Published Entry
Status / Basis
Air suspension
Standard
Standard
12 V or 24 V built-in compressor
Option
Option
Mechanical suspension
Not available
Not available
Quick release
Standard
Standard
Weight adjustment
Automatic up to 150 kg
Published reference
Suspension stroke
60 mm
Published reference
Seat height adjustment
80 mm; current page says optional 100 mm
Published reference
Height-adjustable pedestal with turn table
Option
Option
Adjustable shock absorber
Standard
Standard
Slide travel
170 mm
Published reference
Pneumatic lumbar adjustment
Standard
Standard
Adjustable armrests
Option
Option
Adjustable headrest
Not available
Not available
Backrest, cushion tilt and cushion depth adjustment
Standard
Standard
Trim
Vinyl standard; cloth and genuine leather options
Mixed
3-point and 2-point seat belts
Not available
Not available
Document box or pouch
Not available
Not available
Controls
Left-hand standard; right-hand option
Mixed
Footrest kit and adjustable mounting rail
Options
Option
Standard seat connection
216 mm
Published reference
Testing wording
Materials flammability conforms to IMO standards
Manufacturer-published statement
Configuration caveat: Final trim, colour, controls, suspension, compressor voltage, pedestal, rail, footrest, mounting, approval evidence, drawing, documents, price, delivery and applicable warranty route are confirmed in ERBA Marine’s written quotation.

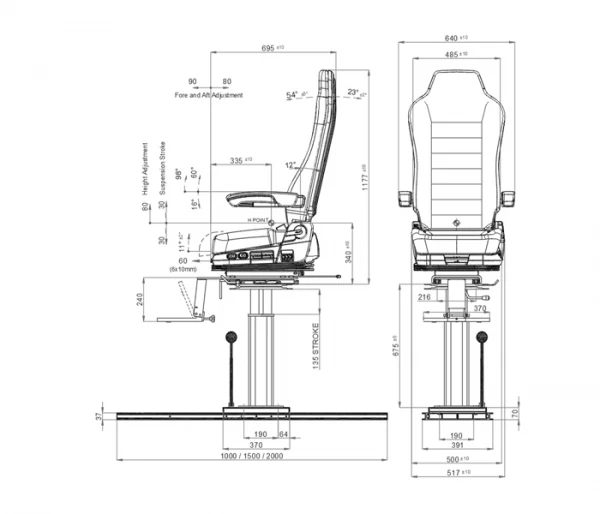

OFFICIAL DIMENSION DRAWING
MP1202 - X'Treme Marine dimensions and mounting reference
The drawing is shown separately at source-appropriate size. Click it to open the native Elementor lightbox for closer inspection.
Drawing note: Use labelled dimensions only. Do not infer a missing overall dimension from the image. The current drawing, selected configuration and mounting interface are confirmed before order.
TECHNICAL SELECTION DATA
What ERBA Marine needs before confirming a marine seat
Good seat selection starts with verified duty, mounting, space, power, configuration and document requirements.
Vessel, duty and existing installation
- Vessel type, use, length and operating area
- Operator or passenger duty and required seat quantity
- Newbuild, refit, retrofit or replacement requirement
- Existing seat make, model, mounting pattern and photographs
- Available width, depth, height and service access
- Required suspension, adjustment and control-side preferences
Configuration, documents and delivery
- Available 12 V or 24 V supply where a compressor is requested
- Trim material, colour and interior or exterior location
- Pedestal, turn-table, mounting rail and footrest requirements
- Required drawings, approval evidence and project documents
- Delivery country, port and required schedule
CLEAR PROJECT ROUTE
From seat requirement to confirmed supply
No model, option or mounting accessory is treated as a fit until the vessel and current configuration are reviewed.
1. Send vessel and seat data
Share duty, quantity, mounting, space, power, trim, pedestal, approval and delivery requirements.
2. Review the closest model
ERBA Marine checks the current published model, standard equipment, options and open configuration points.
3. Confirm the proposal
The quotation records the selected model, trim, controls, pedestal or rail, documentation and applicable warranty route.
4. Coordinate supply
ERBA Marine remains the customer-facing contact for the supply and after-sales route stated in writing.
FREQUENTLY ASKED QUESTIONS
MP1202 - X'Treme Marine FAQs
Practical answers for model comparison, mounting, configuration and quotation.
Air suspension is standard. A 12 V or 24 V built-in compressor is an option; mechanical suspension is not available.
Vinyl is standard. Cloth and genuine leather are options.
No. The current table marks an adjustable headrest as not available.
No. The current table marks these items as options where available. Their compatibility and included scope are confirmed for the selected configuration.
Pilot’s current page states: materials flammability conforms to IMO standards. This is not presented as a blanket IMO certification.
No. Current configuration, options, controls, mounting, drawing, documents and applicable warranty terms are confirmed in ERBA Marine’s written quotation.
