PROJECT-CONFIGURED CHILLED WATER
Modular Marine Chiller Systems
A modular chiller route divides the required duty into coordinated modules. It can help with access, staged operation, maintenance planning and redundancy, but the total system still requires one hydraulic, electrical and control design.
Published values and visuals are selection references. Current configuration and applicable warranty terms are confirmed in ERBA Marine’s written quotation.
Capacity divided into serviceable modules
Module quantity and arrangement follow the vessel load and machinery-space plan.
Authorized GCC Dealer
Coolmar product selection and supply coordinated by ERBA Marine.
Project-Led Review
Loads, utilities, space and interfaces checked from verified data.
Newbuild & Retrofit
Support for planned projects, refits and replacement scopes.
Current Configuration
Specifications and warranty terms confirmed in quotation.
Authorized Coolmar dealer for the GCC
ERBA Marine manages regional product selection, technical clarification, quotation and supply for Coolmar marine HVAC and refrigeration equipment.
PUBLISHED SELECTION REFERENCE
Model range and solution choices
Use the published lineup to identify the closest duty. ERBA Marine confirms the current production model after reviewing the vessel and installation data.
Capacity architecture
The project load is divided into suitable modules rather than selected from a single fixed model list.
- Peak and part-load duty
- Number and size of modules
- Future service and replacement access
Hydraulic architecture
Common and module-level water interfaces are coordinated together.
- Seawater flow and manifolds
- Chilled-water pumps and headers
- Flow protection and freeze protection
Control and redundancy
Staging logic should reflect the vessel’s operating profile.
- Lead-lag and stage control
- Alarm and monitoring scope
- Required N+1 or operational redundancy
Selection note: Model references, nominal capacities and legacy drawings help identify the closest family. Final voltage, refrigerant, dimensions, controls, accessories and performance are confirmed from current Coolmar documentation before supply.

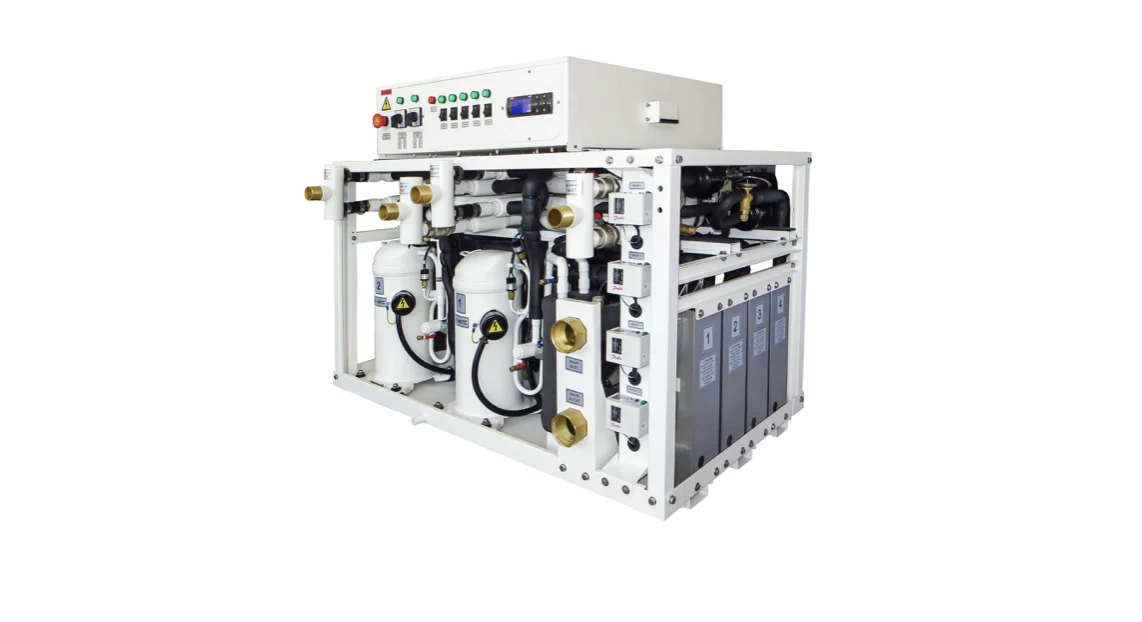

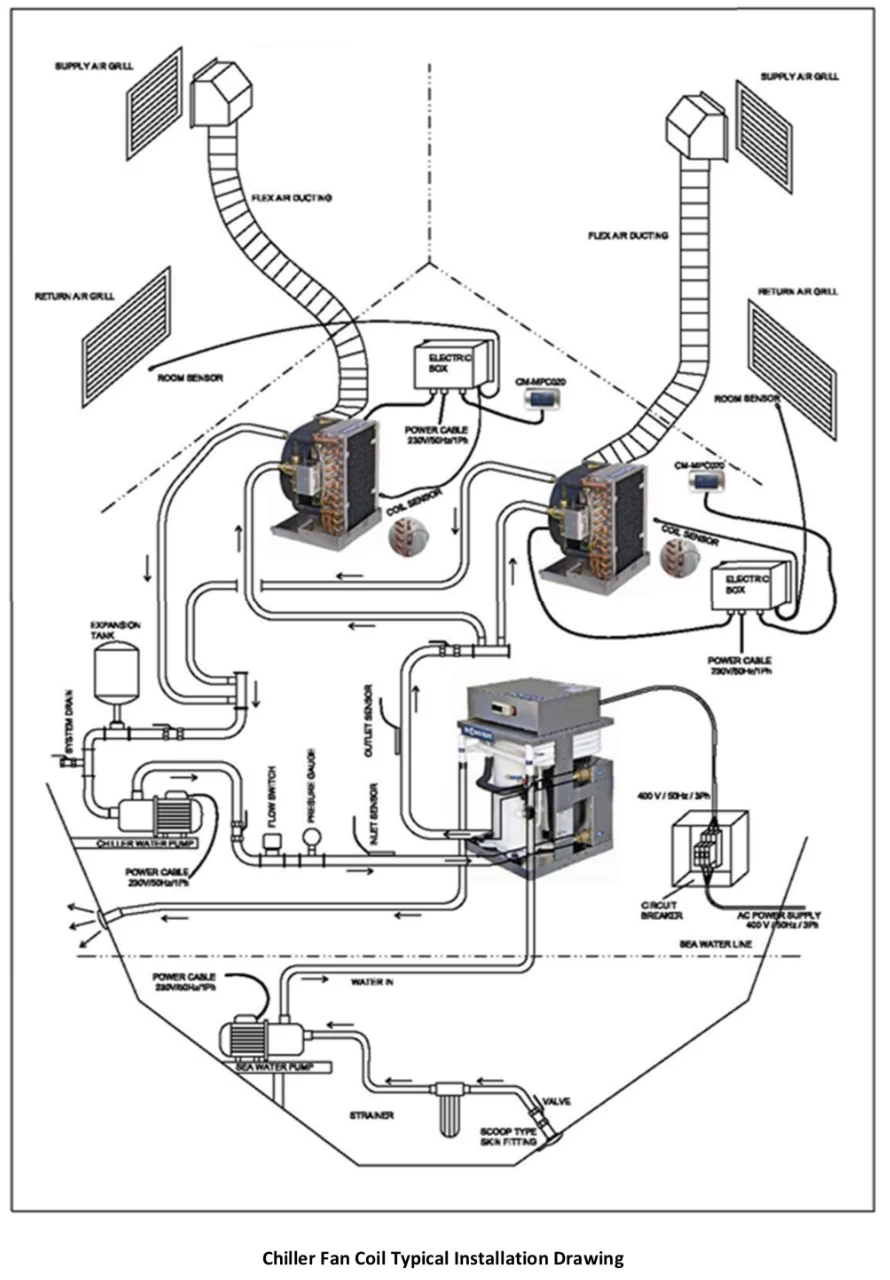

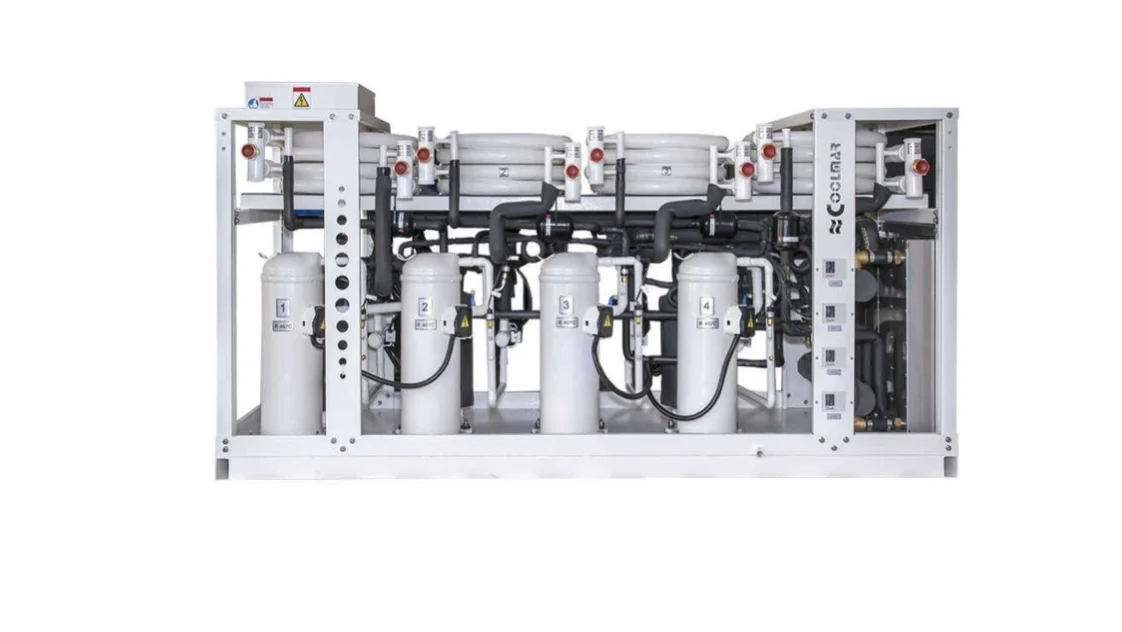

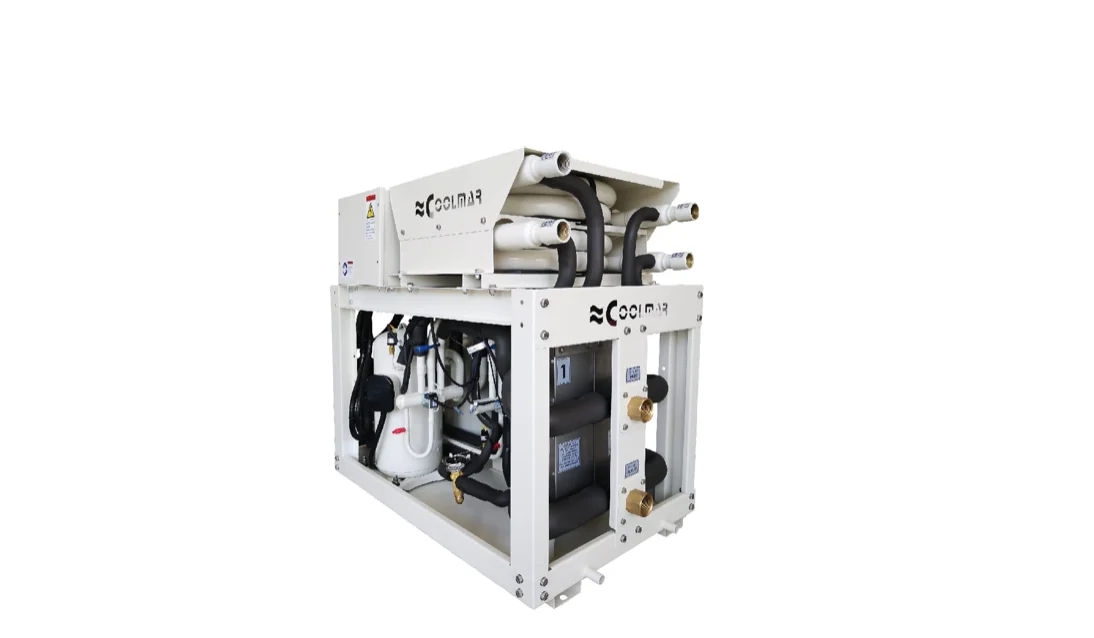

OFFICIAL COOLMAR VISUALS

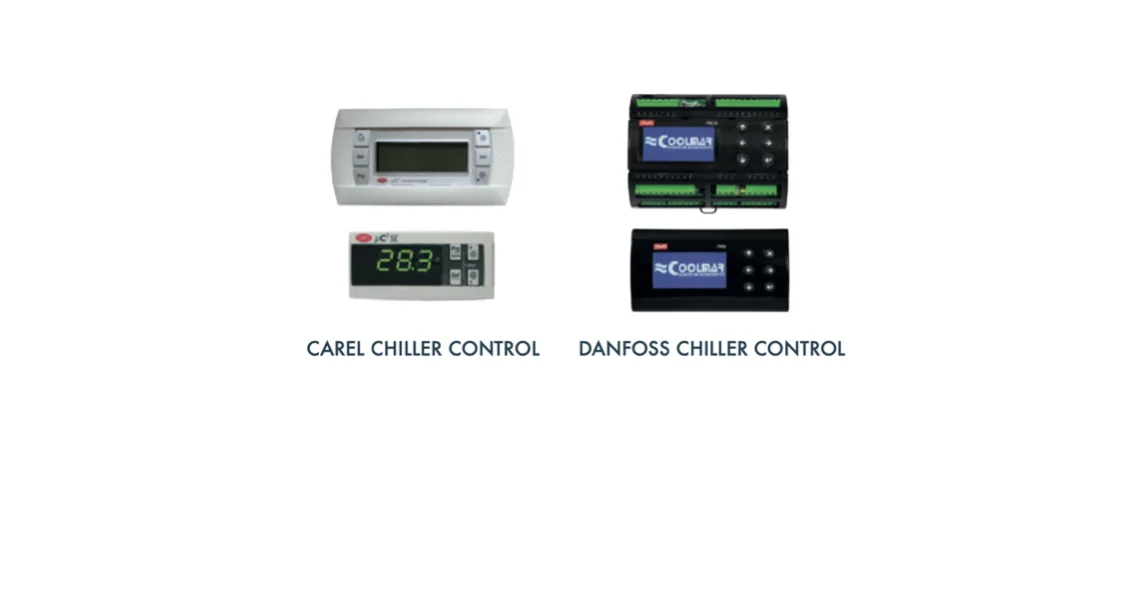

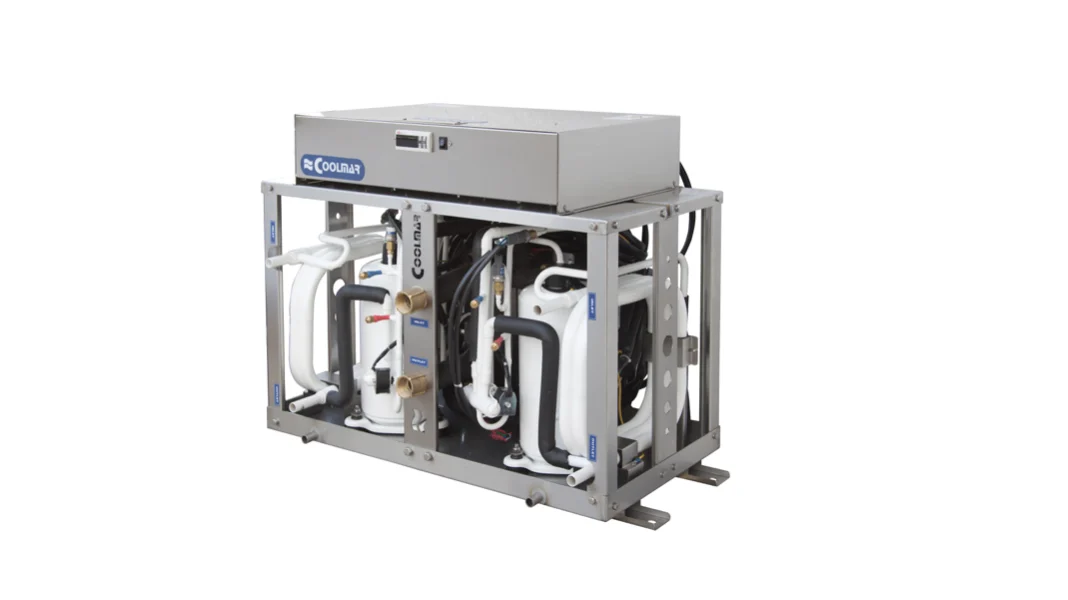

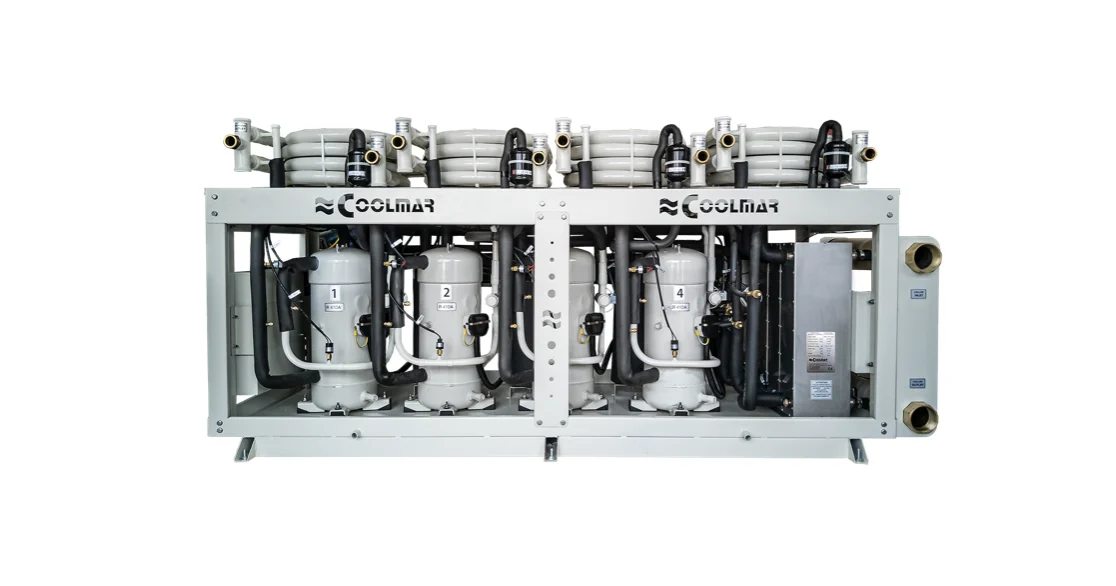

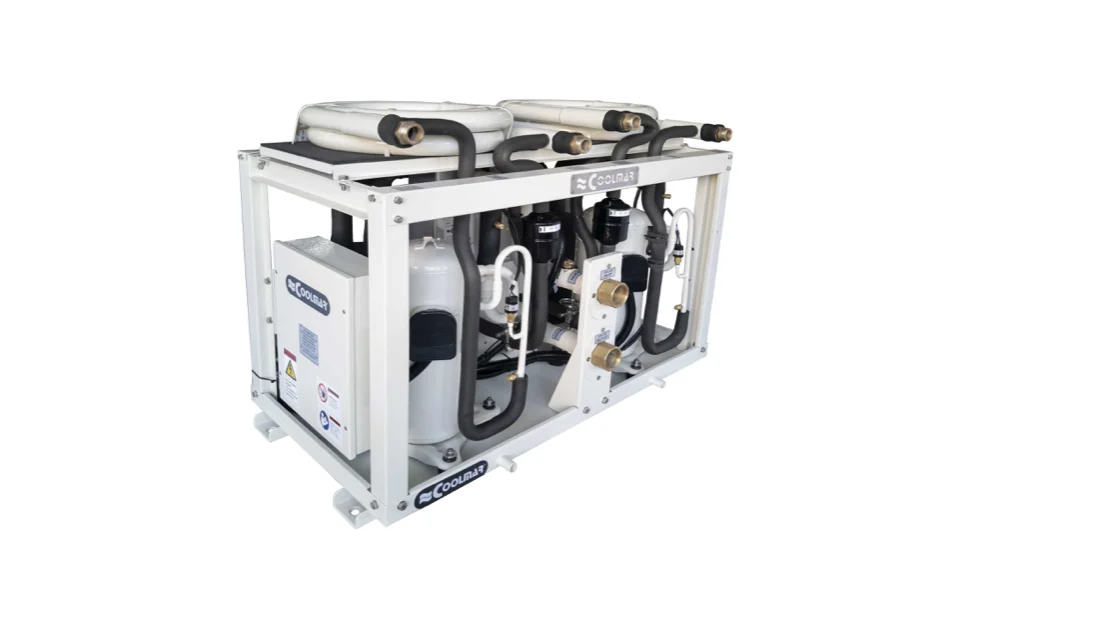

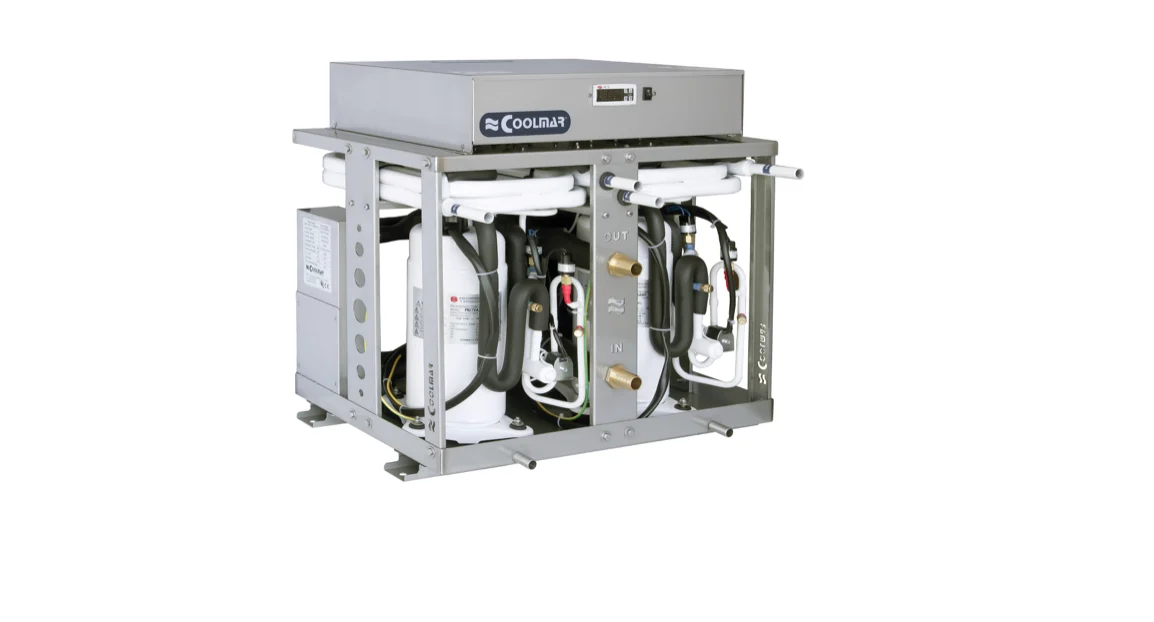

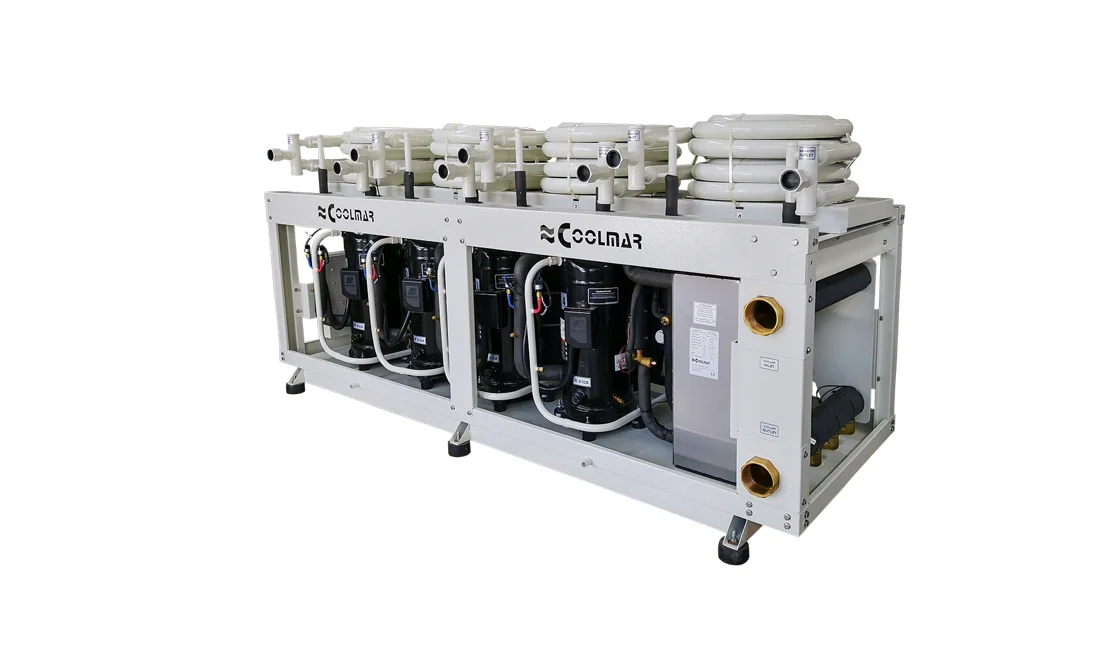

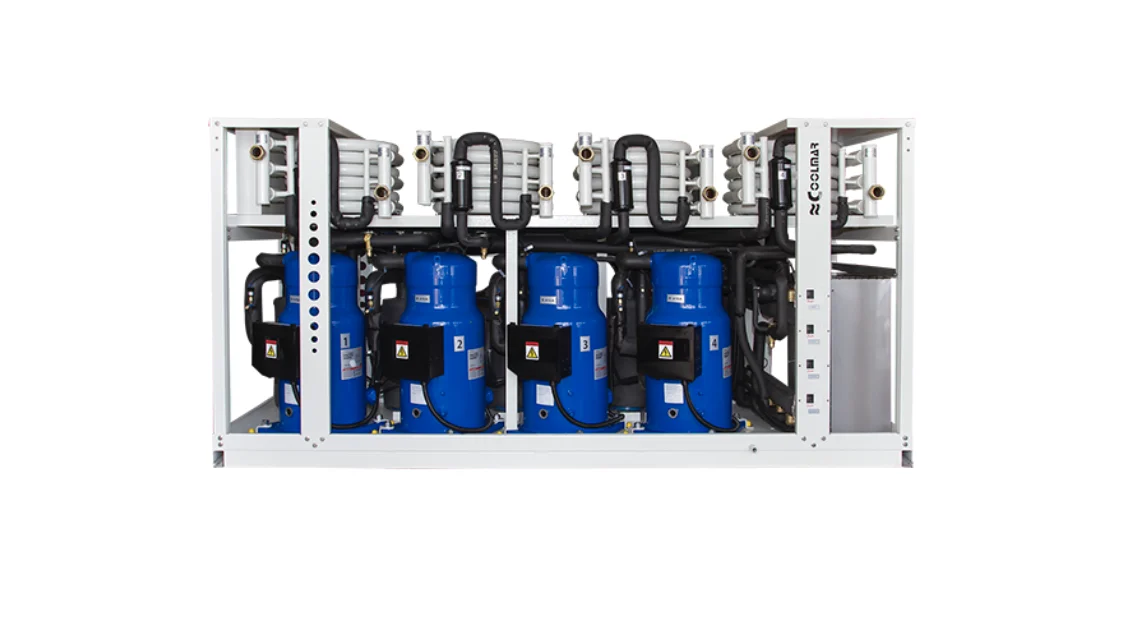

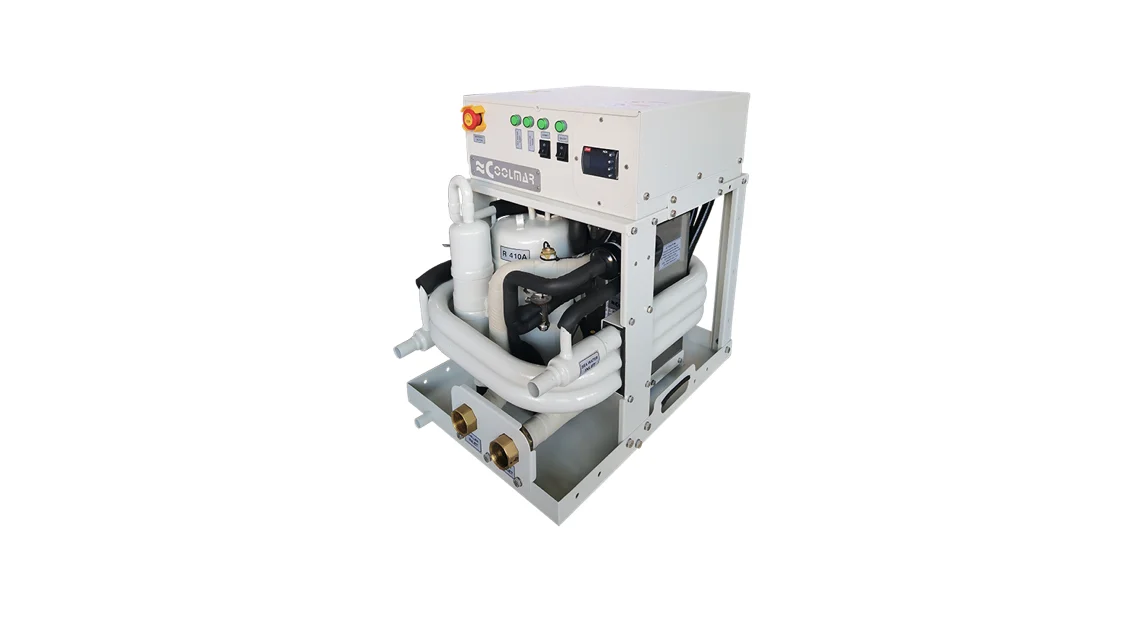

Equipment, components and installation references
These official manufacturer images help explain the available arrangements. Final appearance, components and dimensions follow the confirmed quotation.
TECHNICAL DOWNLOADS
Brochures and data references
Download the official manufacturer material associated with this range. Where old and current documents differ, the written quotation and approved drawing govern.
Coolmar Compact Marine Chiller Brochure
Official Coolmar technical reference. Use it for preliminary review; ERBA Marine confirms the current supplied configuration.
- Manufacturer document
- Model and installation reference
- Current details confirmed at quotation
Coolmar Marine HVAC Solutions Catalogue
Official Coolmar technical reference. Use it for preliminary review; ERBA Marine confirms the current supplied configuration.
- Manufacturer document
- Model and installation reference
- Current details confirmed at quotation
TECHNICAL ENQUIRY CHECKLIST
What to send for a useful HVAC review.
Complete operating, load and interface information reduces unnecessary clarification and helps ERBA Marine prepare a more accurate technical and commercial response.
Vessel, spaces & duty
- Vessel type, length, operating profile and project location
- Newbuild, refit, retrofit or replacement scope
- Required cooling and heating duty or existing unit capacity
- Design ambient-air and seawater temperatures
Utilities, interfaces & drawings
- Available voltage, phase and frequency
- Maximum equipment space and service-access route
- Air, water, refrigerant, drain and control interfaces
- Drawings, photographs, documentation needs and required delivery date
PROJECT PROCESS
A clear route from HVAC enquiry to coordinated supply.
Marine HVAC selection benefits from documented loads, design conditions and interface checkpoints.
PROCESS
1. Send the project data
Share the vessel, spaces, duty, design conditions, utilities, drawings and required scope.
PROCESS
2. Clarify the interfaces
ERBA Marine identifies missing inputs and checks capacity, space, air, water and electrical interfaces.
PROCESS
3. Confirm the proposal
Configuration, current specifications, documentation, warranty terms, price and delivery are agreed.
PROCESS
4. Coordinate supply
ERBA Marine remains the customer-facing contact through the confirmed supply scope.
Important: Published ranges and examples are selection guidance. Final capacity, dimensions, voltage, refrigerant, materials, controls, documentation, warranty terms, price and delivery are confirmed only in ERBA Marine’s written quotation.
FREQUENTLY ASKED QUESTIONS
Modular Marine Chillers FAQs
Practical answers for model selection, installation planning and quotation.
Not necessarily. The modular solution is configured from the required duty, module count, hydraulic design, electrical limits, controls and redundancy objective.
They can help when smaller modules suit the machinery-space access route, but lifting, isolation, pipework and service clearance must be planned in advance.
No. Efficiency depends on equipment selection, staging, pumps, design temperatures and the real load profile. The module count should be justified by the project data.
No. Published model data and drawings are selection references. ERBA Marine confirms the current capacity, voltage, refrigerant, dimensions, controls, accessories and documentation in the written quotation.
Yes. Send the existing make and model, rated duty, voltage, overall dimensions, interface sizes, clear photographs and the reason for replacement.
A non-standard capacity, layout or equipment format can be reviewed when a listed range does not suit the vessel. Feasibility and the final specification require engineering confirmation.
ERBA Marine is an authorized Coolmar dealer for the GCC and manages regional selection, technical clarification, quotation, supply and the applicable warranty route stated in the quotation.
MODEL-SPECIFIC ENQUIRY
Request a Modular Marine Chillers review.
Send the closest model or family together with the vessel, load, design conditions, power supply, space and interface data. ERBA Marine will identify missing inputs before quotation.
- Attach drawings, schedules and clear photographs.
- State design ambient-air and seawater conditions.
- Confirm voltage, phase, frequency and installation envelope.
- Current configuration and warranty route are confirmed in writing.
