COOLMAR MAS SPLIT SERIES
Split Marine Air Conditioning Systems
Coolmar MAS split systems separate the indoor air-moving section from the compressor and seawater-cooled outdoor section. This can improve installation flexibility where cabin space, service access or compressor location make a single package impractical.
Published values and visuals are selection references. Current configuration and applicable warranty terms are confirmed in ERBA Marine’s written quotation.
Separate indoor and outdoor sections
A split arrangement coordinated around load, piping, drainage and service access.
Authorized GCC Dealer
Coolmar product selection and supply coordinated by ERBA Marine.
Project-Led Review
Loads, utilities, space and interfaces checked from verified data.
Newbuild & Retrofit
Support for planned projects, refits and replacement scopes.
Current Configuration
Specifications and warranty terms confirmed in quotation.
Authorized Coolmar dealer for the GCC
ERBA Marine manages regional product selection, technical clarification, quotation and supply for Coolmar marine HVAC and refrigeration equipment.
PUBLISHED SELECTION REFERENCE

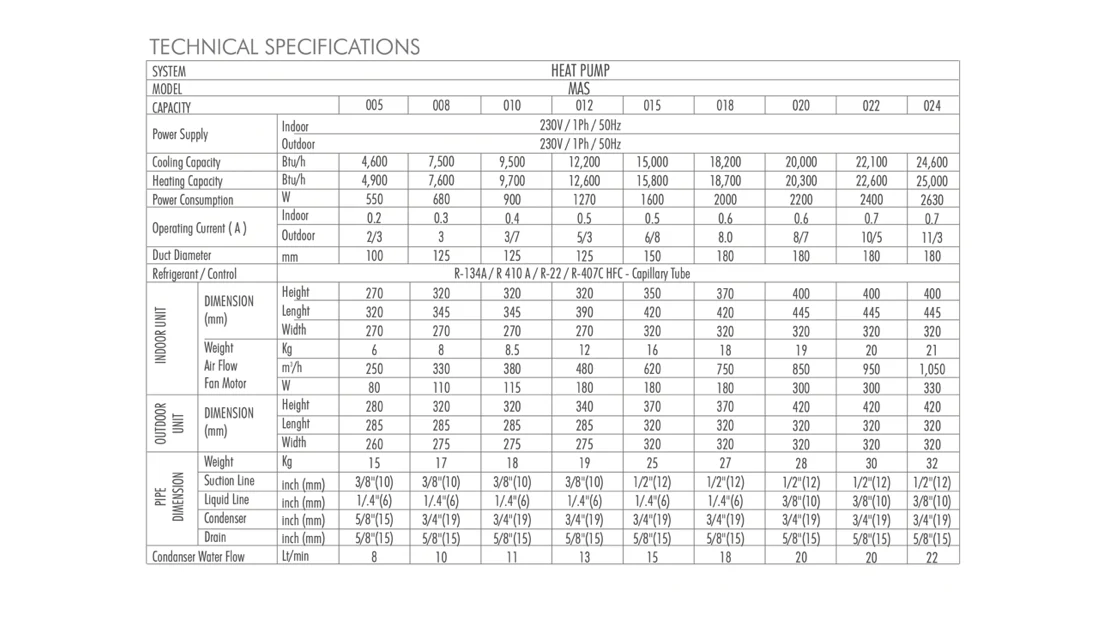

Model range and solution choices
Use the published lineup to identify the closest duty. ERBA Marine confirms the current production model after reviewing the vessel and installation data.
Lower published references
Catalogue cooling references for compact zones.
- MAS 005 — 4,600 BTU/h
- MAS 008 — 7,500 BTU/h
- MAS 010 — 9,500 BTU/h
- MAS 012 — 12,200 BTU/h
Mid-range published references
Catalogue cooling references for larger cabin loads.
- MAS 016 — 15,000 BTU/h
- MAS 018 — 18,200 BTU/h
- MAS 020 — 20,000 BTU/h
Upper published references
Catalogue references subject to current engineering confirmation.
- MAS 022 — 22,100 BTU/h
- MAS 024 — 24,600 BTU/h
- Special capacities can be reviewed
Selection note: Model references, nominal capacities and legacy drawings help identify the closest family. Final voltage, refrigerant, dimensions, controls, accessories and performance are confirmed from current Coolmar documentation before supply.

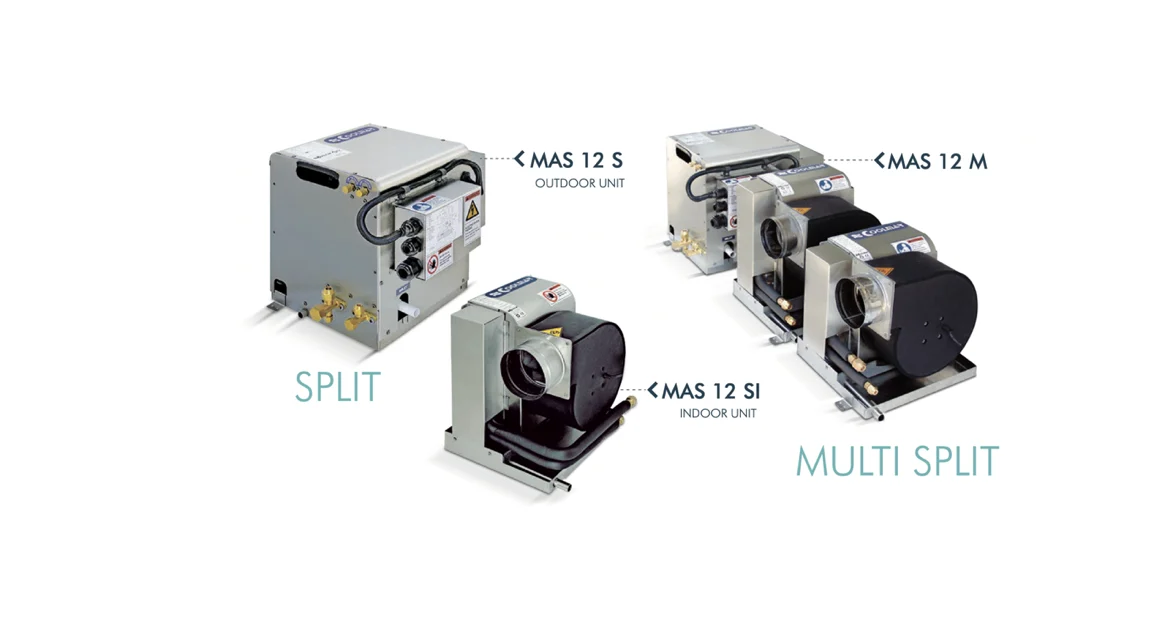

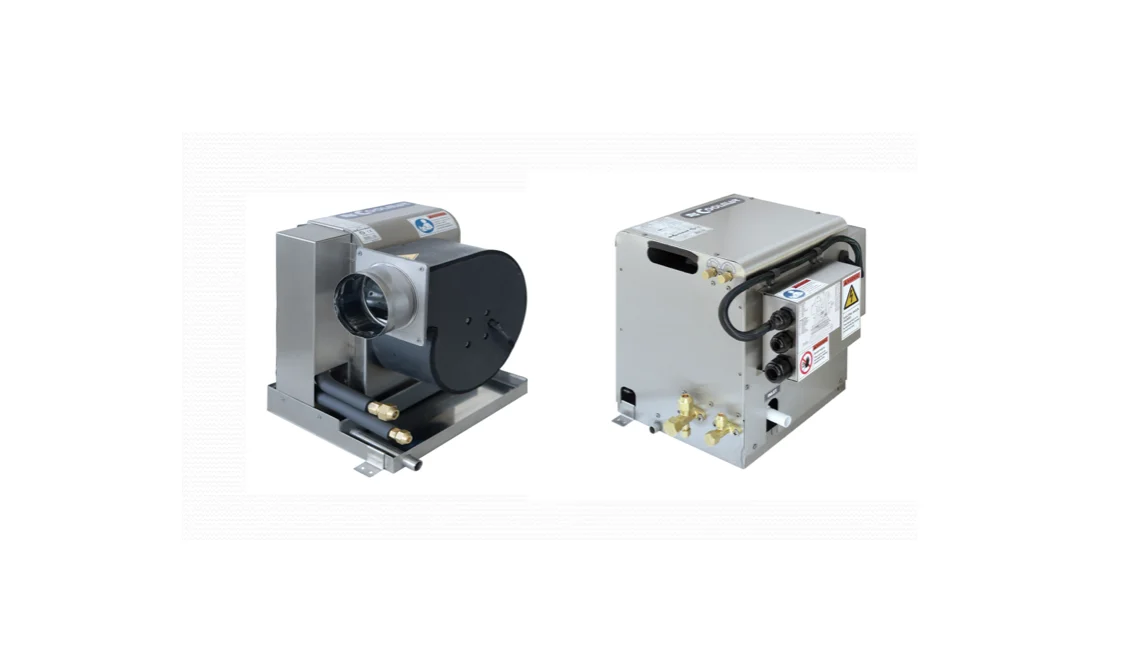

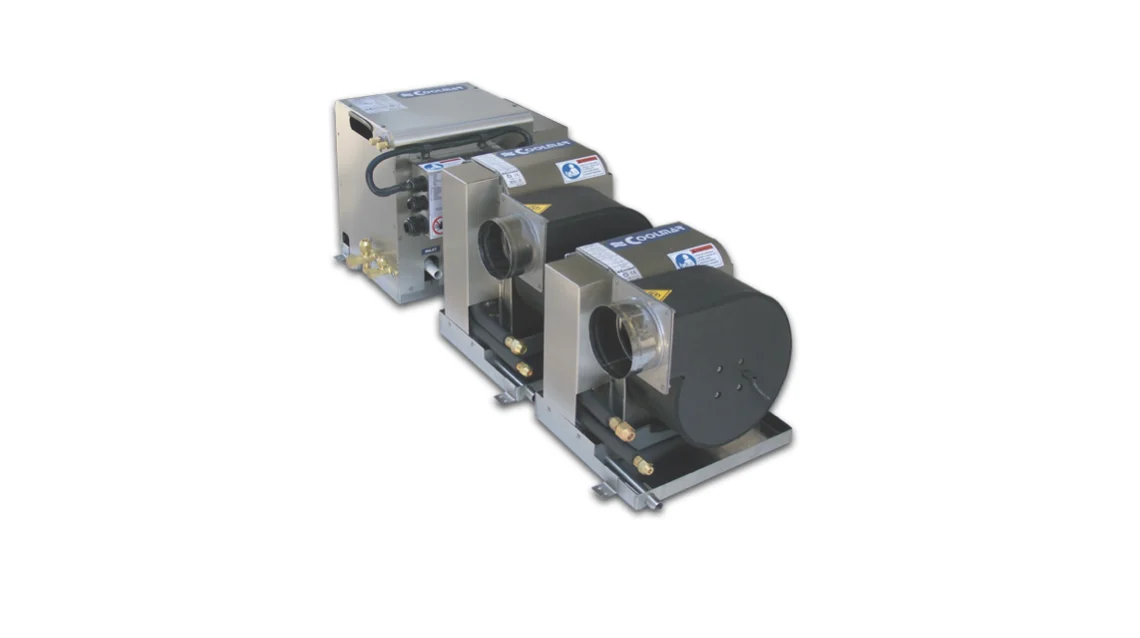

OFFICIAL COOLMAR VISUALS
Equipment, components and installation references
These official manufacturer images help explain the available arrangements. Final appearance, components and dimensions follow the confirmed quotation.
TECHNICAL DOWNLOADS
Brochures and data references
Download the official manufacturer material associated with this range. Where old and current documents differ, the written quotation and approved drawing govern.
Coolmar Split and Multi-Split Air Conditioning Brochure
Official Coolmar technical reference. Use it for preliminary review; ERBA Marine confirms the current supplied configuration.
- Manufacturer document
- Model and installation reference
- Current details confirmed at quotation
Coolmar Marine HVAC Solutions Catalogue
Official Coolmar technical reference. Use it for preliminary review; ERBA Marine confirms the current supplied configuration.
- Manufacturer document
- Model and installation reference
- Current details confirmed at quotation
TECHNICAL ENQUIRY CHECKLIST
What to send for a useful HVAC review.
Complete operating, load and interface information reduces unnecessary clarification and helps ERBA Marine prepare a more accurate technical and commercial response.
Vessel, spaces & duty
- Vessel type, length, operating profile and project location
- Newbuild, refit, retrofit or replacement scope
- Required cooling and heating duty or existing unit capacity
- Design ambient-air and seawater temperatures
Utilities, interfaces & drawings
- Available voltage, phase and frequency
- Maximum equipment space and service-access route
- Air, water, refrigerant, drain and control interfaces
- Drawings, photographs, documentation needs and required delivery date
PROJECT PROCESS
A clear route from HVAC enquiry to coordinated supply.
Marine HVAC selection benefits from documented loads, design conditions and interface checkpoints.
PROCESS
1. Send the project data
Share the vessel, spaces, duty, design conditions, utilities, drawings and required scope.
PROCESS
2. Clarify the interfaces
ERBA Marine identifies missing inputs and checks capacity, space, air, water and electrical interfaces.
PROCESS
3. Confirm the proposal
Configuration, current specifications, documentation, warranty terms, price and delivery are agreed.
PROCESS
4. Coordinate supply
ERBA Marine remains the customer-facing contact through the confirmed supply scope.
Important: Published ranges and examples are selection guidance. Final capacity, dimensions, voltage, refrigerant, materials, controls, documentation, warranty terms, price and delivery are confirmed only in ERBA Marine’s written quotation.
FREQUENTLY ASKED QUESTIONS
Split Marine Air Conditioning FAQs
Practical answers for model selection, installation planning and quotation.
It can suit a layout where the indoor zone has limited room, where compressor location matters or where access favours separate indoor and outdoor sections.
The refrigerant route, condensate drain, electrical supply and controls must be coordinated together with the outdoor section’s seawater connections and service access.
Coolmar catalogue references include MAS 005, 008, 010, 012, 016, 018, 020, 022 and 024. Some technical-brochure codes differ, so the current selection is confirmed at quotation.
No. Published model data and drawings are selection references. ERBA Marine confirms the current capacity, voltage, refrigerant, dimensions, controls, accessories and documentation in the written quotation.
Yes. Send the existing make and model, rated duty, voltage, overall dimensions, interface sizes, clear photographs and the reason for replacement.
A non-standard capacity, layout or equipment format can be reviewed when a listed range does not suit the vessel. Feasibility and the final specification require engineering confirmation.
ERBA Marine is an authorized Coolmar dealer for the GCC and manages regional selection, technical clarification, quotation, supply and the applicable warranty route stated in the quotation.
MODEL-SPECIFIC ENQUIRY
Request a Split Marine Air Conditioning review.
Send the closest model or family together with the vessel, load, design conditions, power supply, space and interface data. ERBA Marine will identify missing inputs before quotation.
- Attach drawings, schedules and clear photographs.
- State design ambient-air and seawater conditions.
- Confirm voltage, phase, frequency and installation envelope.
- Current configuration and warranty route are confirmed in writing.
